Search vehicle by VIN

View Audi Audi A8/S8 qu. 1998 wheels, brakes Parts Catalog


Model:

idcatalogmarktmodelleinsatzauslaufbezeichnunglandersymbolepis_typkatalogartfihauptgruppenvbz_tabellevkbproduktionswerkkatalogmarktbrasiliensubmarkeneue_bilderepis_alphaezb
4090
AU
ZA
A8Q
1994
2017
Audi A8/S8 qu.
0
0
0
0
GN

Auto:

idcatalogmarktmodelleinsatzauslaufbezeichnunglandersymbolepis_typkatalogartfihauptgruppenvbz_tabellevkbproduktionswerkkatalogmarktbrasiliensubmarkeneue_bilderepis_alphaezb
4095
AU
ZA
A8Q
1998
153
0
0
1234567890
1
4D
N
RDW
2
N
153
N

Group:

cataloghghgtsflagshort_texttextsynonim
AU
6
183
wheels, brakes

List of parts:

Image:

Spare Parts:

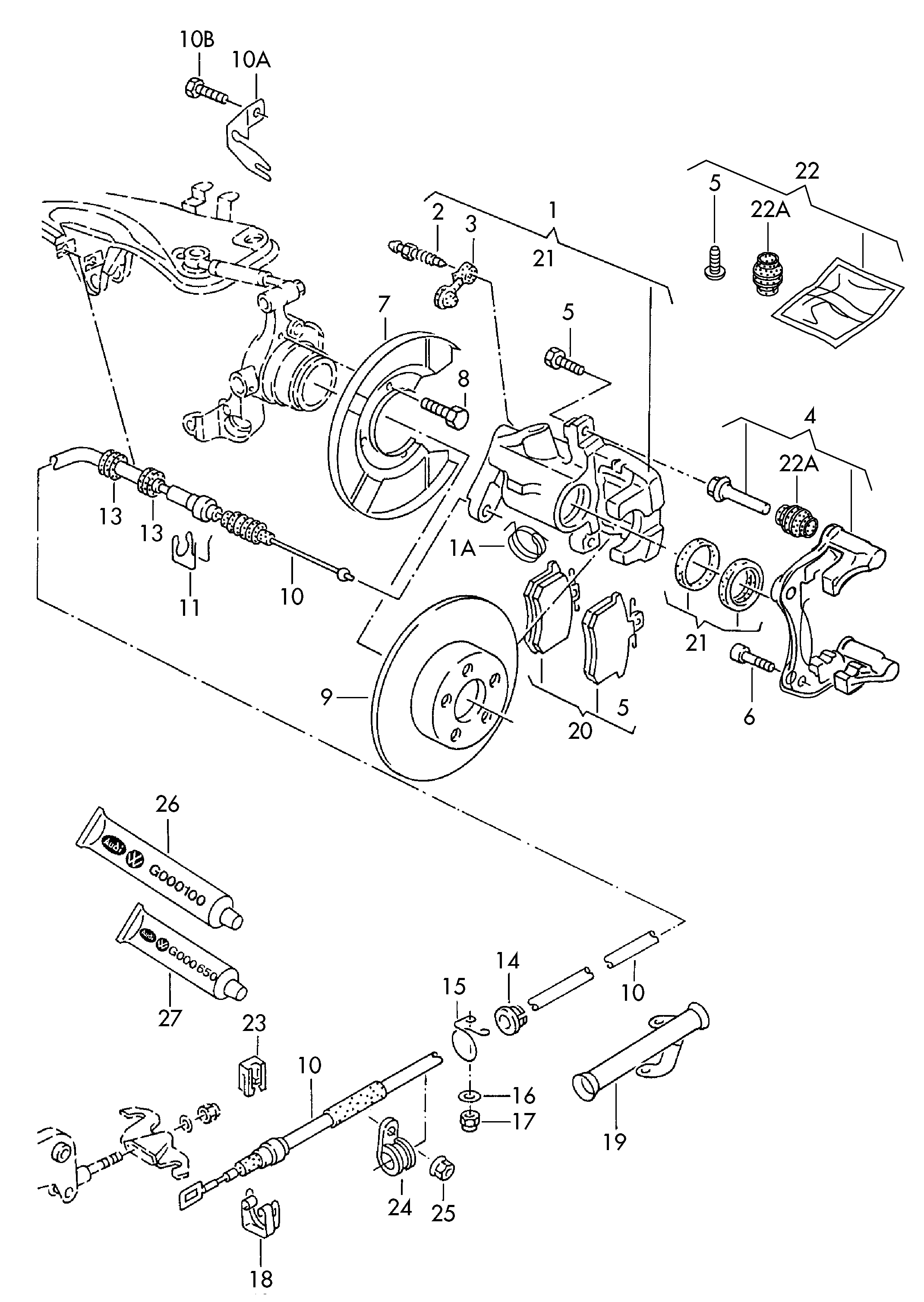

Pos. Classic Part Number Image Period Name Note ST Input Data by Model PR-Number MKB4 GKB Price

floating caliper brake
brake disc
rear
GIRLING
AKG,AGH,AEM,
ABZ,ALG,ACK,
AEJ,AAH,AKJ,
AEW,AFB,AKN,
AHC,AKH
1
   4D0615423B
(Attn! Cancelled from 01062017)
brake caliper housing
left
1
ABZ,AEM,AGH,
AEW,ACK,AKG,
ALG,AKJ,AHC
1 C
   4D0615423
(Attn! Cancelled from 01082002)
brake caliper housing
left
1
ABZ,AEM,AGH,
AEW,ACK,AKG,
ALG,AKJ,AHC
(1)
   4D0615424B
(Attn! Cancelled from 01042015)
brake caliper housing
right
1
ABZ,AEM,AGH,
AEW,ACK,AKG,
ALG,AKJ,AHC
(1) C
   4D0615424
(Attn! Cancelled from 01102002)
brake caliper housing
right
1
ABZ,AEM,AGH,
AEW,ACK,AKG,
ALG,AKJ,AHC
(1) C
   4D0615423A
(Attn! Cancelled from 01082002)
brake caliper housing
left
1
AAH,AEJ,AFB,
AKN
(1)
   4D0615423AX
(Attn! Cancelled from 01092017)
brake caliper housing
left
1
AAH,AEJ,AFB,
AKN
(1) C
   4D0615424A
(Attn! Cancelled from 01082002)
brake caliper housing
right
1
AAH,AEJ,AFB,
AKN
(1)
   4D0615424AX
(Attn! Cancelled from 01022018)
brake caliper housing
right
1
AAH,AEJ,AFB,
AKN
-
   4D0698680 X
(Attn! Cancelled from 01072016)
1 set: brake caliper housing
1
AAH,AEJ,AFB,
AKN
(1)
   4D0615423B
(Attn! Cancelled from 01062017)
brake caliper housing
for rim:
left
18"
1
AKG,AGH,AEM,
ABZ,ALG,ACK,
AEW,AKJ,AKH,
AHC
(1)
   4D0615424B
(Attn! Cancelled from 01042015)
brake caliper housing
for rim:
right
18"
1
AKG,AGH,AEM,
ABZ,ALG,ACK,
AEW,AKJ,AKH,
AHC
(1) C
   4D0615423C
(Attn! Cancelled from 01052003)
brake caliper housing
for rim:
left
18"
1
AAH,AEJ,AFB,
AKN
(1)
   4D0615423AX
(Attn! Cancelled from 01092017)
brake caliper housing
for rim:
left
18"
1
AAH,AEJ,AFB,
AKN
(1) C
   4D0615424C
(Attn! Cancelled from 01062003)
brake caliper housing
for rim:
right
18"
1
AAH,AEJ,AFB,
AKN
(1)
   4D0615424AX
(Attn! Cancelled from 01022018)
brake caliper housing
for rim:
right
18"
1
AAH,AEJ,AFB,
AKN
-
   4D0698680 X
(Attn! Cancelled from 01072016)
1 set: brake caliper housing
for rim:
right
18"
1
AAH,AEJ,AFB,
AKN
2
   447615273
(Attn! Cancelled from 25122005)
breather valve
2
3
   211611483
dust cap
2
4 C
   447615425
(Attn! Cancelled from 31071996)
brake carrier with
pad retaining pin
F >> 4D-S-007 867
;;2
ABZ,AEM,AGH
4 C
   447615425A
(Attn! Cancelled from 01102002)
brake carrier with
pad retaining pin
2
ABZ,AEM,AGH,
AEW,ACK,AKG,
ALG,AKJ,AHC
(4)
   447615425B
(Attn! Cancelled from 01082015)
brake carrier with
pad retaining pin
for rim:
18"
2
AKG,AGH,AEM,
ABZ,ALG,ACK,
AKH,AHC,AKJ,
AEW
(4) C
   443615425A
(Attn! Cancelled from 01072002)
brake carrier with
pad retaining pin
2
AAH,AEJ,AFB,
AKN
(4)
   443615425B
(Attn! Cancelled from 01122019)
brake carrier with
pad retaining pin
for rim:
18"
2
AAH,AEJ,AFB,
AKN
5
   321615141
(Attn! Cancelled from 25122005)
bolt, hexagon head
self-locking
M8X21
2
6
   N  10181502
(Attn! Cancelled from 01062016)
socket head bolt with
hexagon socket head
M10X1,25X40
4
6 C
   4D0098060G
(Attn! Cancelled from 01052000)
socket head bolt with hexagon
socket head
'order quantity 6'
M10X1,25X40
4
7
   4D0615611C
(Attn! Cancelled from 01042015)
cover plate for brake disc
left rear
1
(7)
   4D0615611E
(Attn! Cancelled from 01022015)
cover plate for brake disc
for special armoured vehicle
left rear
1
(7)
   4D0615612C
(Attn! Cancelled from 01062015)
cover plate for brake disc
right rear
1
(7)
   4D0615612E
(Attn! Cancelled from 01022015)
cover plate for brake disc
for special armoured vehicle
right rear
1
8
   N  90444601
(Attn! Cancelled from 01112011)
hexagon head bolt (combi)
M6X12
4
8 C
   4D0098050BB
(Attn! Cancelled from 01101999)
bolt, hex. hd. (combi.)
'order unit 10'
M6X12Z1
4
9
   447615601A
(Attn! Cancelled from 01062021)
brake disc (vented)
rear
269X20   5/112
2
AKG,AGH,AEM,
ABZ,ALG,ACK,
AKH,AHC,AKJ,
AEW
(9)
   443615601B
(Attn! Cancelled from 01042015)
brake disc
245X10   5/112
2
AAH,AEJ,AFB,
AKN
(9)
   4D0615601A
(Attn! Cancelled from 01072016)
brake disc (vented)
for special armoured vehicle
269X20   5/112
rear
2
10 C
   4D0609721H
(Attn! Cancelled from 01102001)
brake cable
F >> 4D-S-003 467
also use:
left
*>>4D-S-002000
4D0 609 722 H
;1;;1
(10) C
   4D0609721K
(Attn! Cancelled from 01072017)
brake cable
F 4D-S-003 468>>
left
;1
(10) C
   4D0609722H
(Attn! Cancelled from 01062017)
brake cable
F >> 4D-T-003 221
also use:
right
*>>4D-S-002000
4D0 609 721 H
;1;;1
(10) C
   4D0609722K
(Attn! Cancelled from 01072017)
brake cable
F 4D-T-003 222>>
right
;1
11 C
   857609745A
(Attn! Cancelled from 01022018)
spring clip
2
19 C
   4D0609761C
(Attn! Cancelled from 01062017)
guide for brake cable
1
20 C
   4D0698451
(Attn! Cancelled from 31121996)
0496 - 1298
1 set of brake pads for
disk brake
F >> 4D-T-006 000
*
rear
;;1
(20) C
   4D0698451A
(Attn! Cancelled from 01062011)
0496 - 1298
1 set of brake pads for
disk brake
F 4D-T-006 001>>
*4D-V-007 001
*
rear
;;1
20
   4D0698451B
(Attn! Cancelled from 01082007)
1 set of brake pads for
disk brake
rear
1
21
   4D0698671
(Attn! Cancelled from 01092020)
set of gaskets for brake
caliper housing
1
AKG,AGH,AEM,
ABZ,ALG,ACK,
AKH,AHC,AKJ,
AEW
(21) C
   535698671
(Attn! Cancelled from 25122005)
set of gaskets for brake
caliper housing
       GIRLING
1
AAH,AEJ
(21)
   8D0698671
(Attn! Cancelled from 01072020)
set of gaskets for brake
caliper housing
1
AAH,AEJ,AFB,
AKN
22
   8E0698470B
(Attn! Cancelled from 26012022)
1 set protective sleeves
for guide pins
2
22 C
   443698470
(Attn! Cancelled from 01062011)
1 set protective sleeves
for guide pins
2
22A

no replacement part
included in position:
4,22
24 C
   4D0609623
(Attn! Cancelled from 31081996)
bracket
F >> 4D-V-002 075
;1
(24) C
   4D0609623A
(Attn! Cancelled from 01122001)
bracket
F 4D-V-002 076>>
;1
25 C
   N  01118312
hexagon nut, self-locking
M6
1
- C
   N  01021710
(Attn! Cancelled from 01122010)
hexagon bolt
F >> 4D-V-002 075
M6X20
;1
- C
   N  0103054
(Attn! Cancelled from 01032020)
hexagon bolt
F 4D-V-002 076>>
M6X32
;1
- C
   4D0609766C
(Attn! Cancelled from 31051996)
bracket
F >> 4D-T-004 505
;1
- C
   4D0609766D
(Attn! Cancelled from 01072017)
bracket
F 4D-T-004 506>>
;1
- C
   4D0098020J
(Attn! Cancelled from 25122005)
hexagon bolt
'bestelleinheit 6'
M8X25
1
- C
   4D0609736
(Attn! Cancelled from 01102017)
bracket for brake cable
F >> 4D-T-015 000
right
;1
- C
   4D0609736A
(Attn! Cancelled from 01082018)
bracket for brake cable
F >> 4D-T-015 000
right
;1
- C
   4D0098010D
(Attn! Cancelled from 01052011)
hexagon collar nut
'bestelleinheit 20'
F >> 4D-T-015 000
M6
;;2
- C
   N  01100624
(Attn! Cancelled from 01042011)
hexagon nut
F 4D-V-000 001>>
M6
;2
- C
   8A0711347A
(Attn! Cancelled from 01082018)
bracket for brake cable
left
1
- C
   811819055A
(Attn! Cancelled from 01072011)
clip nut
2
- C
   4D0609736C
(Attn! Cancelled from 31071998)
0694 - 1298
bracket for brake cable
F 4D-V-000 001>> 4D-V-004 500
*
right
;1
- C
   4D0609736B
(Attn! Cancelled from 31071998)
0694 - 1298
bracket for brake cable
F 4D-V-000 001>> 4D-V-004 500
*
right
;1
26
   G  052150A2
lithium lubricating grease
180G
1
27
   G  000650
solid lubricant paste
100G
1
