View Skoda Pick Up 1997 front axle, steering Parts Catalog


Model:

idcatalogmarktmodelleinsatzauslaufbezeichnunglandersymbolepis_typkatalogartfihauptgruppenvbz_tabellevkbproduktionswerkkatalogmarktbrasiliensubmarkeneue_bilderepis_alphaezb
4718
SK
CZ
PICK
1996
2001
Pick Up
0
0
0
0
RT

Auto:

idcatalogmarktmodelleinsatzauslaufbezeichnunglandersymbolepis_typkatalogartfihauptgruppenvbz_tabellevkbproduktionswerkkatalogmarktbrasiliensubmarkeneue_bilderepis_alphaezb
4720
SK
CZ
PICK
1997
97
0
0
1234567890
1
6U
RT
CZ
5
N
097
N

Group:

cataloghghgtsflagshort_texttextsynonim
SK
4
181
front axle, steering

List of parts:

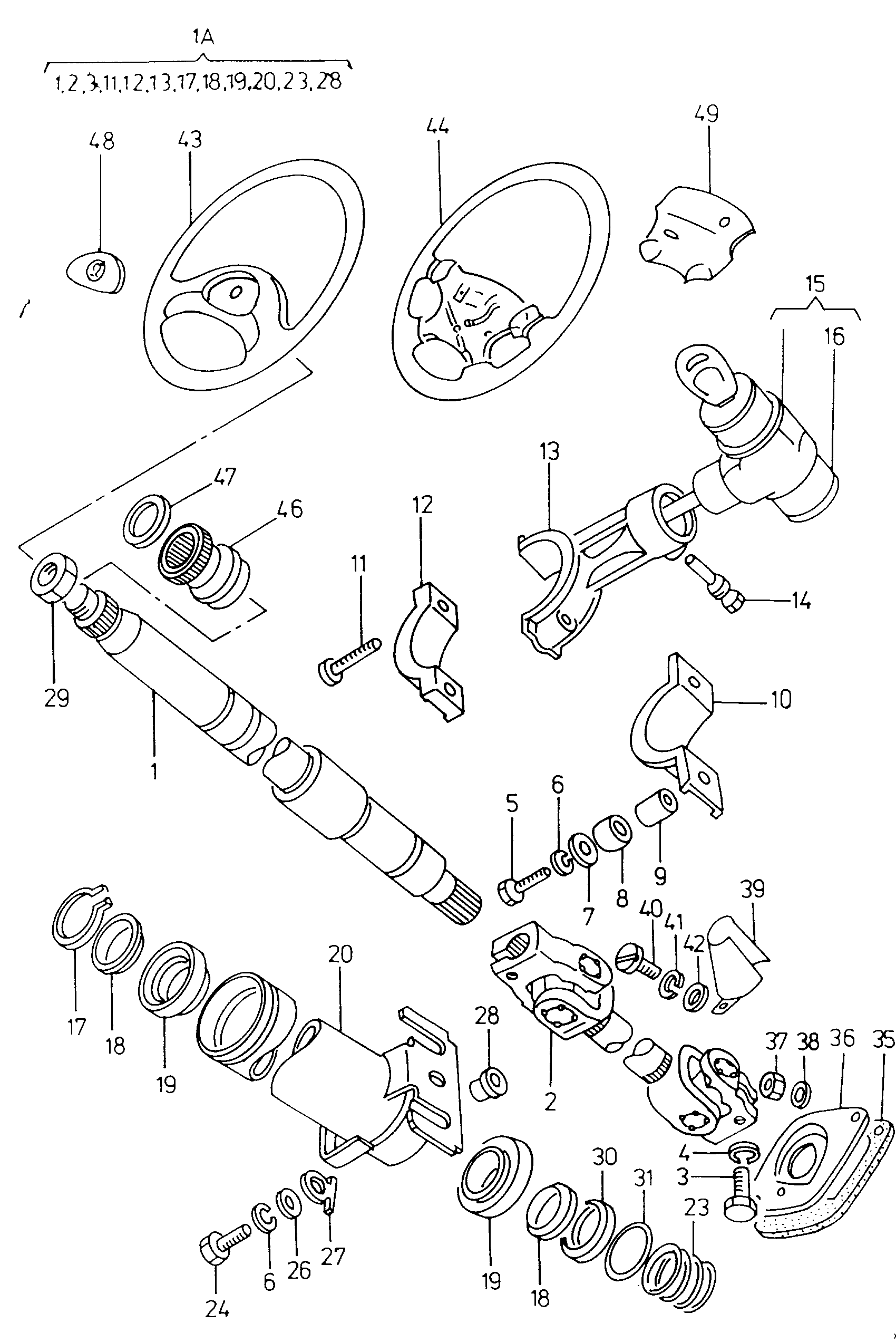

Image:

Spare Parts:

Pos. Classic Part Number Image Period Name Note ST Input Data by Model PR-Number MKB4 GKB Price

steering tube
steering wheel
1
   6U0419503A
(Attn! Cancelled from 01012016)
steering tube
10.95 - 07.96
;1
(1)
   007355285
(Attn! Cancelled from 01022015)
steering tube
08.96 - 12.96
;1
(1)
   007355285
(Attn! Cancelled from 01022015)
steering tube
for models with airbag
for models with power steering
for steering wheel:
10.95 - 12.96
6U0 419 091 A
;;;;;1
(1A)
   6U1419501G
(Attn! Cancelled from 01122016)
steering tube
for models with airbag
           lhd
1
(1A)
   6U2419501G
(Attn! Cancelled from 01102016)
steering tube
for models with airbag
           rhd
(1A)
   6U1419501J
(Attn! Cancelled from 01102016)
steering tube
for models with airbag
for models with power steering
           lhd
1
(1A)
   6U2419501J
(Attn! Cancelled from 01102016)
steering tube
for models with airbag
for models with power steering
           rhd
1
(1A)
   6U1419501F
(Attn! Cancelled from 01122016)
steering tube
           lhd
1
(1A)
   6U2419501F
(Attn! Cancelled from 01102016)
steering tube
           rhd
1
(1A)
   6U1419501H
(Attn! Cancelled from 01102016)
steering tube
for models with power steering
01.97 -
           lhd
;;;1
(1A)
   6U2419501H
(Attn! Cancelled from 01102016)
steering tube
for models with power steering
10.97 -
           rhd
;;;1
2
   6U1419972
(Attn! Cancelled from 01042012)
drive shaft
10.95 - 12.96
           lhd
;1
(2)
   6U2419972
(Attn! Cancelled from 01102016)
drive shaft
10.95 -12.96
           rhd
;1
(2)
   6U1419941B
(Attn! Cancelled from 01022015)
steering tube
for models with airbag
10.95 - 12.96
           lhd
;;1
(2)
   6U2419941B
(Attn! Cancelled from 01082013)
steering tube
for models with airbag
10.95 - 12.96
           rhd
;;1
(2)
   6U1419941
(Attn! Cancelled from 01022012)
drive shaft
for models with power steering
10.95 - 12.96
           lhd
;;;1
1,9D
(2)
   6U2419941
(Attn! Cancelled from 01022015)
drive shaft
for models with power steering
10.95 - 12.96
           rhd
;;;1
(2)
   6U1419941A
(Attn! Cancelled from 01012016)
drive shaft
for models with power steering
for models with airbag
10.95 - 12.96
           lhd
;;;;1
(2)
   6U2419941A
(Attn! Cancelled from 01082013)
drive shaft
for models with power steering
for models with airbag
10.95 - 12.96
           rhd
;;;;1
3
   N  90793301
(Attn! Cancelled from 01012017)
hexagon bolt
M8X30
2
4
   N  0120387
spring ring
8
2
5
   N  90793201
(Attn! Cancelled from 01112017)
fitted bolt, hexagon head
M8X35
2
6
   N  0120387
spring ring
8
4
7
   6U0419133
(Attn! Cancelled from 01012017)
washer
2
8
   6U0415545
(Attn! Cancelled from 01012017)
rubber bush
2
(9)
   6U0419739
(Attn! Cancelled from 01012017)
support tube
2
10
   6U0419571
(Attn! Cancelled from 01122016)
clamping sleeve
1
11
   6U0419201
(Attn! Cancelled from 01062014)
sheer bolt
2
12
   6U0419554
(Attn! Cancelled from 01012017)
cover
1
13
   6U0905851
(Attn! Cancelled from 01102017)
support
1
(14)
   6U0419959
(Attn! Cancelled from 01012017)
sheer bolt
1
15
   6U0905851A
(Attn! Cancelled from 01062015)
steering lock
10.94 - 12.97
>> 9U-W-005 437
1
(15)
   6U0905851C
(Attn! Cancelled from 01082021)
steering lock
01.98 -
;1
M98
-
   107905855QA
(Attn! Cancelled from 01072014)
lock cylinder without
key

* to retain the one key
* system the key code
* number must be quoted
* when ordering
10.95 - 12.97
code:
4AT.....
;;;;;;1
-
   107905855QB
(Attn! Cancelled from 01112016)
lock cylinder for ignition
starter switch with read coil,
without key

* to retain the one key
* system the key code
* number must be quoted
* when ordering
01.98 -
code:
1ATS....
;;;;;;;1
-
   6U0419709
(Attn! Cancelled from 01012017)
insert
damping rubber
1
16
   6U0905851B
(Attn! Cancelled from 01102021)
ignition/starter switch
1
17
   N  0124211
securing ring
22X1,2
1
18
   6U0419539
(Attn! Cancelled from 01012017)
spacer ring
2
19
   6U0419517
(Attn! Cancelled from 01012017)
mounting
PLC 03-33
2
(20)
   6U0419563
(Attn! Cancelled from 01082013)
steering column tube
10.95 - 07.96
;1
(20)
   6U0419563A
(Attn! Cancelled from 01012017)
steering column tube
08.96 -
;1
23
   6U0419343
(Attn! Cancelled from 01012017)
spring
1
24
   N  90793901
(Attn! Cancelled from 01012016)
fitted bolt, hexagon head
M8X22
2
26
   N  90456603
(Attn! Cancelled from 01012017)
washer
2
27
   6U0419123
(Attn! Cancelled from 01012017)
adjusting washer
2
28
   6U0419197
(Attn! Cancelled from 01012017)
spacer sleeve
2
29
   N  10218706
(Attn! Cancelled from 01022020)
hexagon nut
M14X1,5
1
30
   6U0419341
(Attn! Cancelled from 01012017)
thrust ring
1
31
   6U0422125A
(Attn! Cancelled from 01012015)
securing ring
22MM
1
35
   6U1803963A
(Attn! Cancelled from 01122016)
seal
1
(35)
   6U1419523
(Attn! Cancelled from 01102016)
gaiter
for models with power steering
           lhd
1
(35)
   6U2419523
(Attn! Cancelled from 01102016)
gaiter
for models with power steering
           rhd
1
36
   6U1804177B
(Attn! Cancelled from 01012017)
cover for steering column
08.96 - 03.98
           lhd
;1
(36)
   6U1804177B
(Attn! Cancelled from 01012017)
cover for steering column
04.98 -
           lhd
;1
(36)
   6U2804197A
(Attn! Cancelled from 01012013)
cover
           rhd
1
(36)
   6U1804177C
(Attn! Cancelled from 01012017)
cover
for models with power steering
           lhd
(36)
   6U2804197C
(Attn! Cancelled from 01102016)
cover
for models with power steering
           rhd
1
37
   N  0111827
hexagon nut, self-locking
M5
X
38
   N  90792201
(Attn! Cancelled from 01042012)
washer
10.94 - 07.96
5,3
X
(38)
   005101973
(Attn! Cancelled from 01012015)
washer
08.96 -
X
39
   6U2419671A
(Attn! Cancelled from 01102016)
protective cap
           rhd
1
(39)
   6U2801955F
(Attn! Cancelled from 01102016)
protective cap
           rhd
1
40
   N  0139681
oval head panel screw
4,8X13
1
41
   N  0120251
(Attn! Cancelled from 01122021)
spring ring
5
1
42
   N  0115562
washer
5,3X9,5X1
1
43
   6U0419091
(Attn! Cancelled from 01082013)
steering wheel
10.95 - 07.96
;1
(43)
   6U0419091B
(Attn! Cancelled from 01102016)
steering wheel
08.96 -
;1
(43)
   6U0419091G
(Attn! Cancelled from 01022015)
steering wheel (leather)
08.96 -
;1
44
   6U0419091D
(Attn! Cancelled from 01102016)
steering wheel
for models with airbag
1
(44)
   6U7419091
(Attn! Cancelled from 01102016)
steering wheel (leather)
for models with airbag
1
FUN
(44)
   6U0419091A
(Attn! Cancelled from 01012016)
steering wheel
only for:
10.95 - 07.96
M00 735 528 5
;;1
(44)
   6U0419091F
(Attn! Cancelled from 01122016)
steering wheel (leather)
only for:
M00 735 528 5
1
(44)
   6U7419091A
(Attn! Cancelled from 01102016)
steering wheel (leather)
1
FUN
46
   6U0419514
(Attn! Cancelled from 01012017)
adapter
1
47
   N  0115343
(Attn! Cancelled from 01092021)
washer
15X28X2,5
1
48

horn button
see illustration:
953-030
49

airbag unit for steering wheel
see illustration:
959-040
(49)
   6U7419669
(Attn! Cancelled from 01012017)
horn button
for models without an airbag
1
(49)
   6U0419670B
(Attn! Cancelled from 01122016)
cover
10.95 - 12.97
only for:
6U0 419 091 A
;1
(49)
   6U0419670B
(Attn! Cancelled from 01122016)
cover
colour combinations
01.98-
only for:
6U0 419 091 A
;;1
