Pos. |
Classic |
Part Number |
Image |
Period |
Name |
Note |
ST |
Input Data by Model |
PR-Number |
MKB4 |
GKB |
Price |
|
|
|
|
|

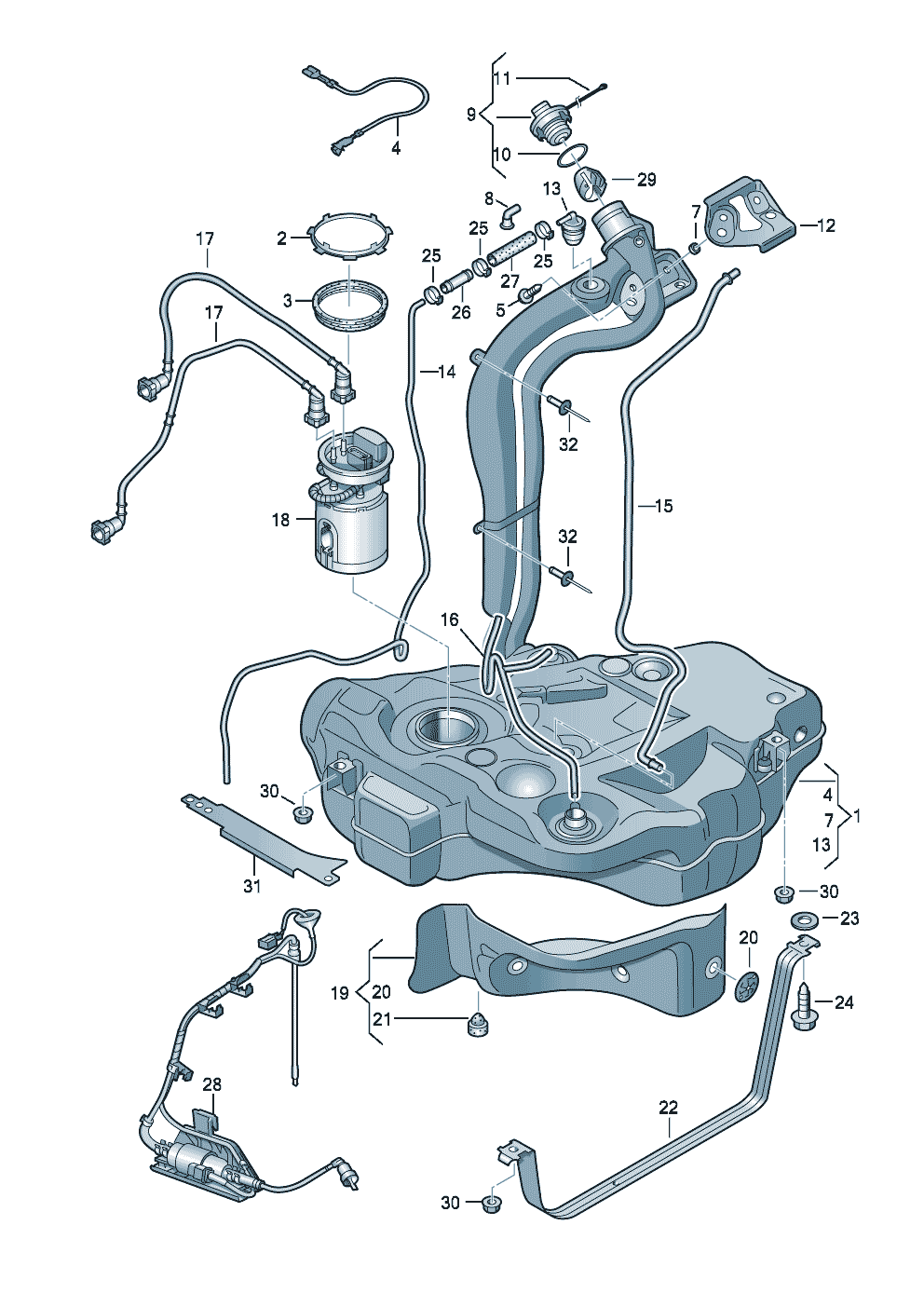

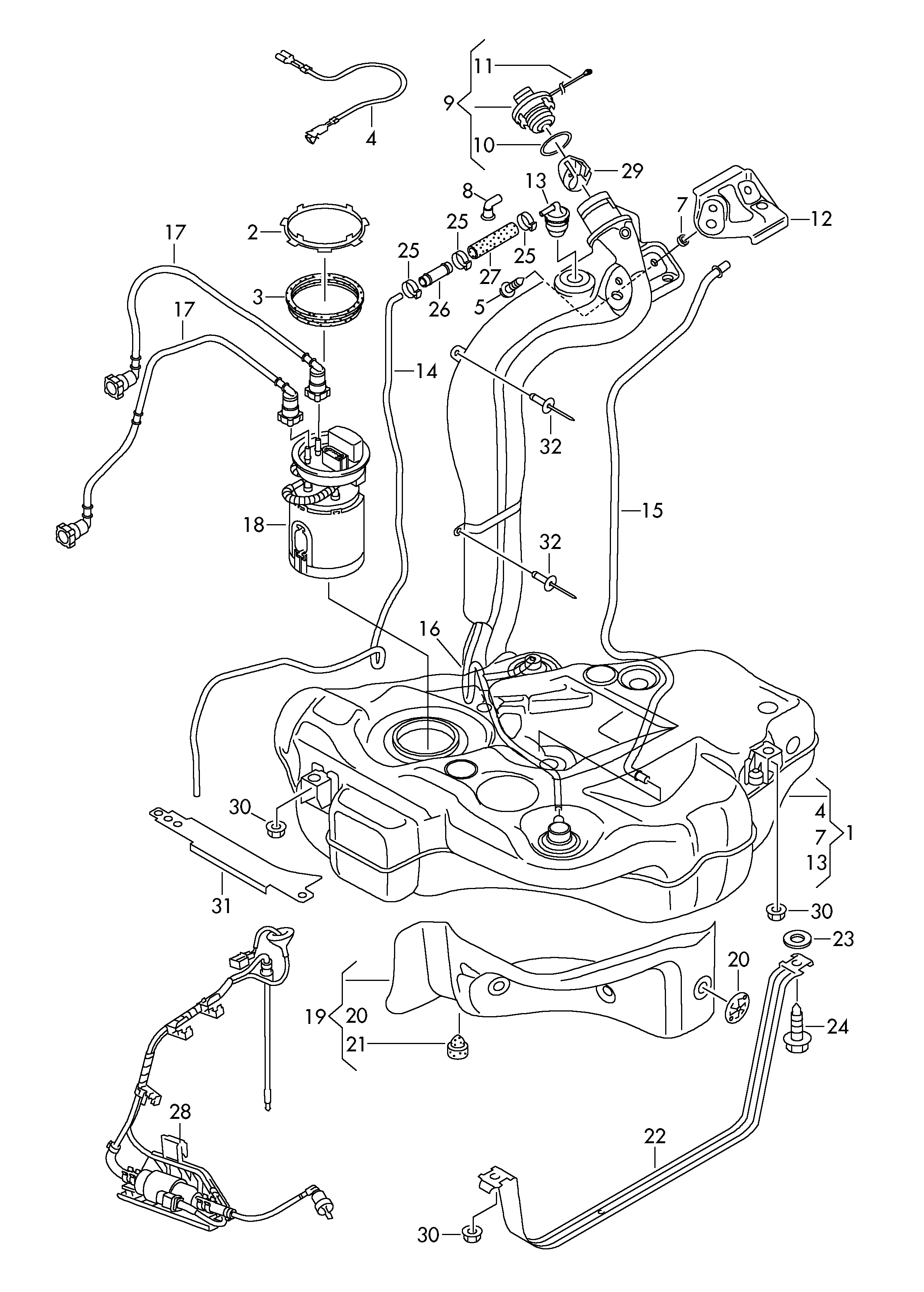

fuel tank |
|
|
|
0F5 - Fuel system for diesel engine [KRS - Fuel systems] 2W3 - Fuel filler cap remote unlocking [TDA - Fuel filler cap/door, locking option] 1A5 - Fuel system for SI engine [KRS - Fuel systems] 1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1E1 - Activated carbon canister [AKB - Activated carbon canister] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 1A1 - Fuel system for SI engine with injector system without fuel return [KRS - Fuel systems] 2G7 - Filler neck module 1 with insert [EBB - Insert for the filling up of unleaded fuel/fuel type] 2W1 - Lockable fuel filler cap [TDA - Fuel filler cap/door, locking option] 1X0 - Front wheel drive [ATA - Drive layout] 9M0 - Without auxiliary heater/fuel-fired parking heater [ZUH - Auxiliary heater] 2G5 - Filler neck module 1 without insert [EBB - Insert for the filling up of unleaded fuel/fuel type] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
1 |
|
1K0201060GB
(Attn! Cancelled from 01122013)
|
|
|
fuel tank with narrow
fuel filler neck (22mm)
for lead-free fuel D >> - 30.05.2010 |
|
1 |
petr. engine |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 2G7 - Filler neck module 1 with insert [EBB - Insert for the filling up of unleaded fuel/fuel type] |
|
|
|
(1) |
|
1K0201060GL
|
|
|
fuel tank with narrow
fuel filler neck (22mm)
for lead-free fuel also use: D - 31.05.2010>> |
1K0 201 931 G 191 201 316 A N 101 992 01 N 103 035 04 |
1;;;1;1;1 |
petr. engine PR:2G7 |
1A5 - Fuel system for SI engine [KRS - Fuel systems] 1E1 - Activated carbon canister [AKB - Activated carbon canister] 1X0 - Front wheel drive [ATA - Drive layout] 2G7 - Filler neck module 1 with insert [EBB - Insert for the filling up of unleaded fuel/fuel type] |
|
|
|
(1) |
|
1K0201060GE
|
|
|
fuel tank D >> - 30.05.2010 |
|
1 |
diesel eng. |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 2G5 - Filler neck module 1 without insert [EBB - Insert for the filling up of unleaded fuel/fuel type] |
|
|
|
(1) |
|
1K0201060DQ
|
|
|
fuel tank D - 31.05.2010>> |
|
1 |
diesel eng.+ PR:2G5 |
0F5 - Fuel system for diesel engine [KRS - Fuel systems] 1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X0 - Front wheel drive [ATA - Drive layout] 2G5 - Filler neck module 1 without insert [EBB - Insert for the filling up of unleaded fuel/fuel type] |
|
|
|
2 |
|
1K0201375
|
|
|
union nut |
|
1 |
|
|
|
|
|
3 |
|
|
|
|
seal ring see illustration, item: |
919-030,4 |
1 |
|
|
|
|
|
4 |
|
1J0201142A
|
|
|
earth line |
|
1 |
|
|
|
|
|
5 |
|
N 10189407
|
|
|
hexagon head bolt (combi) |
M6X25 |
2 |
|
|
|
|
|
7 |
|
1J0201048C
|
|
|
spacer bush |
|
2 |
|
|
|
|
|
9 |
|
1K0201550AK
|
|
|
fuel tank
cap also use: |
107 201 551 FJ |
1;;1 |
petr. engine |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 2W1 - Lockable fuel filler cap [TDA - Fuel filler cap/door, locking option] |
|
|
|
(9) |
|
1K0201550AH
(Attn! Cancelled from 01082016)
|
|
|
fuel tank
cap also use: |
107 201 551 FJ |
1 |
diesel eng.+ |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 2W1 - Lockable fuel filler cap [TDA - Fuel filler cap/door, locking option] |
|
|
|
- |
|
107201551FJ
|
|
|
lock cylinder for
filler cap
* when ordering, indicate
* key and/or vehicle
* identification number. |
|
1 |
|
2W1 - Lockable fuel filler cap [TDA - Fuel filler cap/door, locking option] |
|
|
|
(9) |
|
1K0201550M
(Attn! Cancelled from 01042011)
|
|
|
fuel tank
cap for vehicles with central
locking system |
|
1 |
petr. engine |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 2W3 - Fuel filler cap remote unlocking [TDA - Fuel filler cap/door, locking option] |
|
|
|
(9) |
|
1K0201550AR
|
|
|
cap with retaining strap for
fuel tank for vehicles with central
locking system |
|
1 |
diesel eng. |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 2W3 - Fuel filler cap remote unlocking [TDA - Fuel filler cap/door, locking option] |
|
|
|
10 |
|
1K0201557
(Attn! Cancelled from 01092010)
|
|
|
seal ring |
|
1 |
|
|
|
|
|
12 |
|
|
|
|
housing for fuel filler
neck see illustration, item: |
803-020,24 |
|
|
|
|
|
|
14 |
|
1K0201931G
|
|
|
breather line also use: shorten to: |
191 201 316 A N 101 992 01 N 103 035 04 60MM |
1;2;2;;1 |
petr. engine |
1E1 - Activated carbon canister [AKB - Activated carbon canister] |
|
|
|
15 |
|
1K0201993AF
|
|
|
breather line use if required: |
N 020 902 7 |
1 |
petr. engine |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 1X0 - Front wheel drive [ATA - Drive layout] |
|
|
|
- |
|
N 0209027
|
|
|
cable ties |
B3,5X294 |
X |
|
|
|
|
|
15 |
|
1K0201993M
|
|
|
breather line |
|
1 |
diesel eng. |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X0 - Front wheel drive [ATA - Drive layout] |
|
|
|
16 |
|
1K0201995F
|
|
|
breather line |
|
1 |
petr. engine |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 1X0 - Front wheel drive [ATA - Drive layout] |
|
|
|
17 |
|
|
|
|
see illustration: |
201-040 |
|
diesel eng. |
0F5 - Fuel system for diesel engine [KRS - Fuel systems] |
|
|
|
(17) |
|
|
|
|
see illustration: |
201-040 |
|
petr. engine |
1A5 - Fuel system for SI engine [KRS - Fuel systems] |
|
|
|
18 |
|
|
|
|
see illustration, item: |
919-040,5 |
|
|
|
|
|
|
19 |
|
1Q0201307C
|
|
|
heat shield plate with: clamping washer |
left N 903 350 06 |
1;;5 |
|
|
|
|
|
20 |
|
N 90796502
(Attn! Cancelled from 01022013)
|
|
|
clamping washer |
5X30 |
X |
|
|
|
|
|
21 |
|
|
|
|
no replacement part |
|
|
|
|
|
|
|
22 |
|
1K0201656C
|
|
|
tensioning strap |
|
1 |
|
|
|
|
|
23 |
|
N 90179103
|
|
|
washer |
8,2X18X3 |
2 |
|
|
|
|
|
24 |
|
N 0195308
|
|
|
hex collared bolt |
M8X25 |
X |
|
|
|
|
|
25 |
|
N 10199201
|
|
|
clamp |
15,7X7X0,60 |
2 |
|
|
|
|
|
26 |
|
191201316A
|
|
|
sleeve |
6X29MM |
X |
|
|
|
|
|
- |
|
N 10303504
|
|
|
hose in coils of 5m
'order unit 5' |
7,3X3,5 |
* |
|
|
|
|
|
27 |
|
|
|
|
shorten to: |
60MM |
1 |
|
|
|
|
|
28 |
|
1K0201607N
(Attn! Cancelled from 01102016)
|
|
|
extraction unit with metering
pump fuel metering pump |
1K0 963 303 B |
1 |
petr. engine PR:1E1,9M1 |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
(28) |
|
1K0201607P
|
|
|
extraction unit with metering
pump fuel metering pump D >> - 07.11.2010 |
1K0 963 303 C |
1 |
diesel eng.+ PR:1E0,9M1 |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
(28) |
|
1K0201607AD
|
|
|
extraction unit with metering
pump D - 08.11.2010>> |
|
1 |
|
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
(28) |
|
2K0963303B
|
|
|
fuel metering pump note
technical product information: |
TPI 2022987 |
1 |
"S.." |
|
|
|
|
- |
|
N 10203501
|
|
|
clamp |
11,3X5X0,5 |
1 |
|
9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
- |
|
N 10198301
(Attn! Cancelled from 01012015)
|
|
|
ear crimp hose clamp |
13,3X7X0,6 |
1 |
|
9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
29 |
|
1K0201112D
|
|
|
insert piece fuel filler neck |
|
1 |
petr. engine |
|
|
|
|
(29) |
|
1K0201112E
|
|
|
insert piece fuel filler neck |
|
1 |
diesel eng. |
|
|
|
|
- |
|
G 001770A2
|
|
|
multi-purpose additive
for otto engine fuels |
90ML |
1 |
petrol eng.+ |
1E1 - Activated carbon canister [AKB - Activated carbon canister] |
|
|
|
