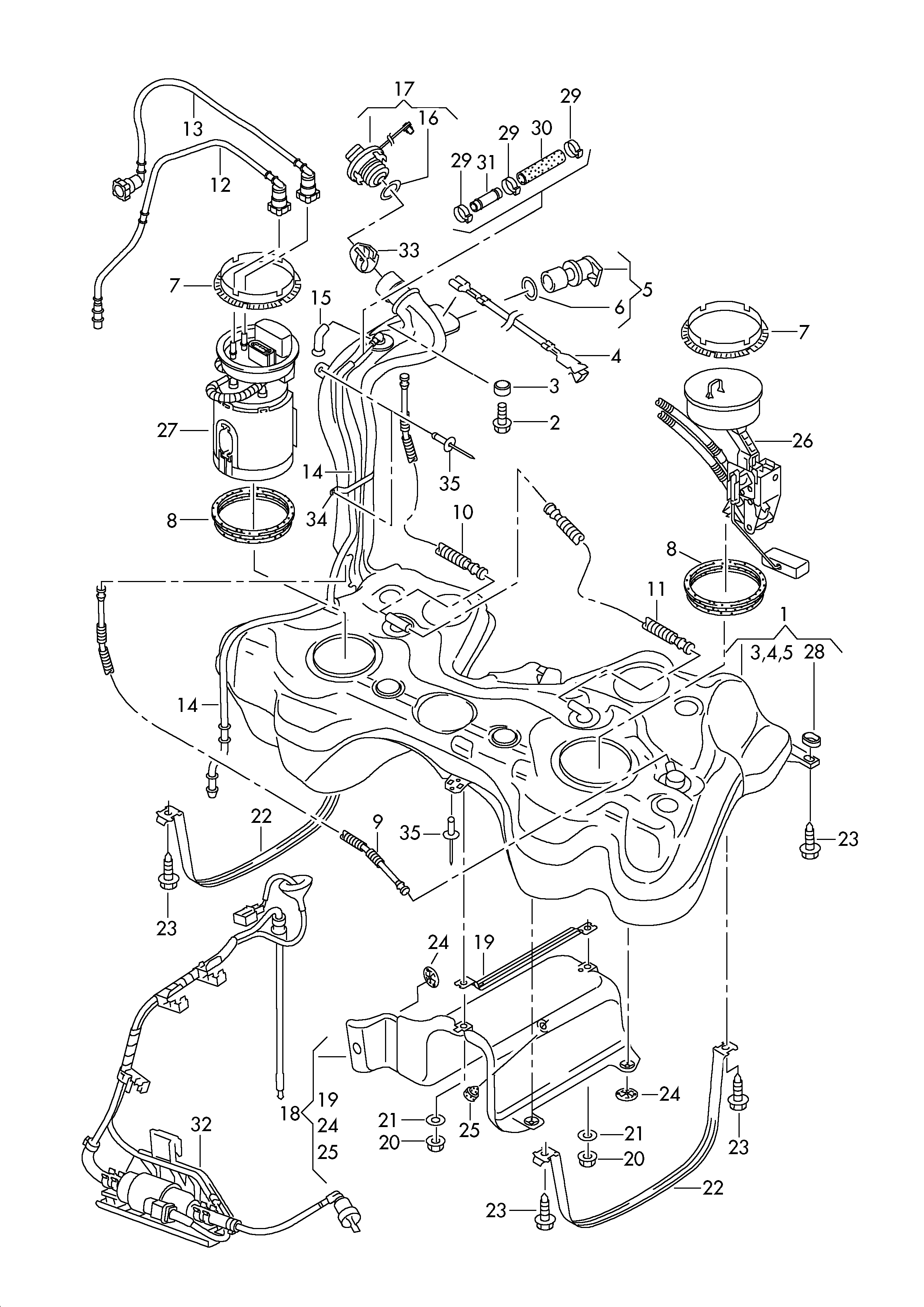

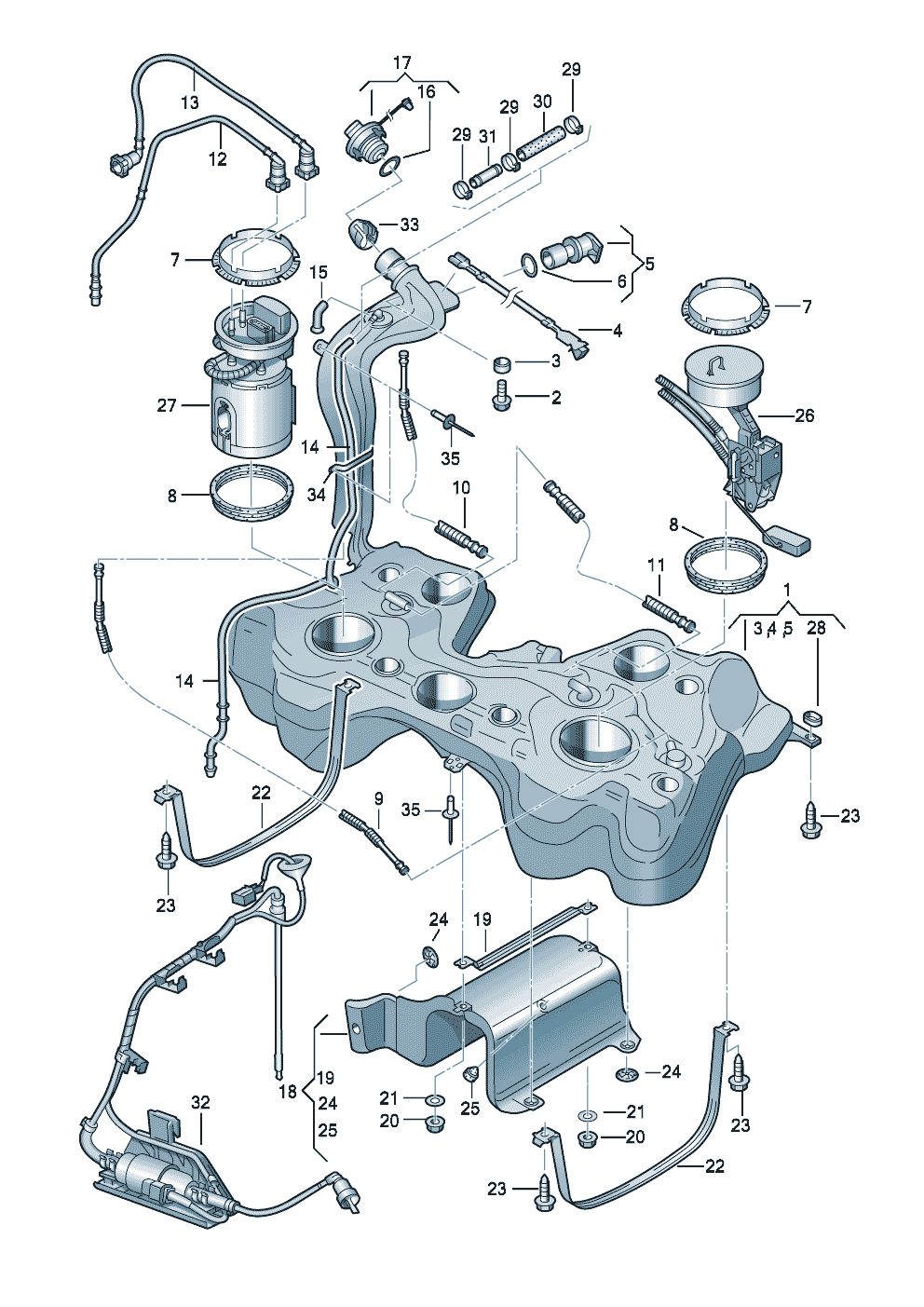

fuel tank |
|
|
4X4 |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1E1 - Activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] 2G5 - Filler neck module 1 without insert [EBB - Insert for the filling up of unleaded fuel/fuel type] 2G7 - Filler neck module 1 with insert [EBB - Insert for the filling up of unleaded fuel/fuel type] 2W1 - Lockable fuel filler cap [TDA - Fuel filler cap/door, locking option] 2W3 - Fuel filler cap remote unlocking [TDA - Fuel filler cap/door, locking option] 9M0 - Without auxiliary heater/fuel-fired parking heater [ZUH - Auxiliary heater] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
| 1 |
|
1K0201060GB
(Attn! Cancelled from 01122013)
|
|
|
fuel tank with narrow
fuel filler neck (22mm)
for lead-free fuel also use: shorten to: |
1K0 201 931 D 191 201 316 A N 101 992 01 N 103 035 04 60MM |
1;;;1;1;2;;1 |
petr. engine |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] 2G7 - Filler neck module 1 with insert [EBB - Insert for the filling up of unleaded fuel/fuel type] |
|
|
|
| (1) |
|
1K0201060GE
|
|
|
fuel tank |
|
1 |
diesel eng. PR:2G5 |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] 2G5 - Filler neck module 1 without insert [EBB - Insert for the filling up of unleaded fuel/fuel type] |
|
|
|
| 2 |
|
N 10189407
|
|
|
hexagon head bolt (combi) |
M6X25 |
2 |
|
|
|
|
|
| 3 |
|
1J0201048C
|
|
|
spacer bush |
|
2 |
|
|
|
|
|
| 4 |
|
1J0201142A
|
|
|
earth line |
|
1 |
|
|
|
|
|
| 5 |
|
|
|
|
no replacement part |
|
|
|
|
|
|
|
| 6 |
|
|
|
|
no replacement part |
|
|
|
|
|
|
|
| 7 |
|
|
|
|
see illustration: |
919-.. |
|
|
|
|
|
|
| 8 |
|
|
|
|
see illustration: |
919-.. |
|
|
|
|
|
|
| 9 |
|
1K0201995E
|
|
|
breather line |
|
1 |
petr. engine |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] |
|
|
|
| 10 |
|
1K0201993S
|
|
|
breather line |
|
1 |
petr. engine |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] |
|
|
|
| 11 |
|
1K0201993R
|
|
|
breather line |
|
1 |
petr. engine |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] |
|
|
|
| (11) |
|
1K0201993AA
|
|
|
breather line |
|
1 |
diesel eng. |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] |
|
|
|
| 12 |
|
|
|
|
see illustration: |
201-040 |
|
petr. engine |
|
|
|
|
| (12) |
|
|
|
|
see illustration: |
201-025 |
|
diesel eng. |
|
|
|
|
| 13 |
|
|
|
|
see illustration: |
201-040 |
|
petr. engine |
|
|
|
|
| (13) |
|
|
|
|
see illustration: |
201-025 |
|
diesel eng. |
|
|
|
|
| 14 |
|
1K0201931D
|
|
|
breather line also use: shorten to: |
191 201 316 A N 101 992 01 N 103 035 04 60MM |
1;1;2 |
petr. engine |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] |
|
|
|
| 15 |
|
895201890
|
|
|
end piece |
|
1 |
diesel eng. |
|
|
|
|
| 16 |
|
1K0201557A
|
|
|
seal ring |
|
1 |
|
|
|
|
|
| 17 |
|
1K0201550AK
|
|
|
fuel tank
cap also use: |
107 201 551 FJ |
1 |
petrol engin |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 2W1 - Lockable fuel filler cap [TDA - Fuel filler cap/door, locking option] |
|
|
|
| (17) |
|
1K0201550AH
(Attn! Cancelled from 01082016)
|
|
|
fuel tank
cap also use: |
107 201 551 FJ |
1 |
diesel eng.+ |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 2W1 - Lockable fuel filler cap [TDA - Fuel filler cap/door, locking option] |
|
|
|
| - |
|
107201551FJ
|
|
|
lock cylinder for
filler cap
* when ordering, indicate
* key and/or vehicle
* identification number. |
|
1 |
|
|
|
|
|
| (17) |
|
1K0201550M
(Attn! Cancelled from 01042011)
|
|
|
fuel tank
cap for vehicles with central
locking system |
|
1 |
petrol engin |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 2W3 - Fuel filler cap remote unlocking [TDA - Fuel filler cap/door, locking option] |
|
|
|
| (17) |
|
8P0201550B
(Attn! Cancelled from 01012015)
|
|
|
cap with retaining strap for
fuel tank for vehicles with central
locking system |
|
1 |
diesel eng.+ |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 2W3 - Fuel filler cap remote unlocking [TDA - Fuel filler cap/door, locking option] |
|
|
|
| 18 |
|
1K0201307F
|
|
|
heat shield plate |
|
1 |
|
1X1 - Four wheel drive [ATA - Drive layout] |
|
|
|
| 19 |
|
|
|
|
no replacement part |
|
|
|
|
|
|
|
| 20 |
|
N 90200201
(Attn! Cancelled from 01062011)
|
|
|
hexagon collar nut
self-locking |
M8 |
2 |
|
|
|
|
|
| 21 |
|
N 90057703
|
|
|
washer |
8,4X21X2 |
2 |
|
|
|
|
|
| 22 |
|
1K0201655B
|
|
|
tensioning strap |
|
2 |
|
|
|
|
|
| 23 |
|
N 0195308
|
|
|
hex collared bolt |
M8X25 |
X |
|
|
|
|
|
| 24 |
|
N 90796502
(Attn! Cancelled from 01022013)
|
|
|
clamping washer |
5X30 |
X |
|
|
|
|
|
| 25 |
|
|
|
|
no replacement part |
|
|
|
|
|
|
|
| 26 |
|
|
|
|
see illustration: |
919-030 |
|
|
|
|
|
|
| 27 |
|
|
|
|
see illustration: |
919-030 |
|
|
|
|
|
|
| 28 |
|
1J0201048C
|
|
|
spacer bush |
|
X |
|
|
|
|
|
| 29 |
|
N 10199201
|
|
|
clamp |
15,7X7X0,60 |
1 |
petr. engine |
|
|
|
|
| - |
|
N 10303504
|
|
|
hose in coils of 5m
'order unit 5' |
7,3X3,5 |
* |
|
|
|
|
|
| 30 |
|
|
|
|
shorten to: |
40MM |
1 |
petr. engine |
|
|
|
|
| 31 |
|
191201316A
|
|
|
sleeve |
6X29MM |
X |
|
|
|
|
|
| 32 |
|
1K0201607Q
|
|
|
extraction unit with metering
pump |
|
1 |
petrol eng.+ PR:1A1,1A5 |
1E1 - Activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
| (32) |
|
1K0201607R
|
|
|
extraction unit with metering
pump D >> - 07.11.2010 |
|
1 |
diesel eng.+ PR:0F8,0F9 |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
| (32) |
|
1K0201607AF
|
|
|
extraction unit with metering
pump D - 08.11.2010>> |
|
1 |
diesel eng. PR:0F3,0F5, 0F8,0F9 |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
| - |
|
N 10203501
|
|
|
clamp |
11,3X5X0,5 |
1 |
|
9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
| - |
|
N 10198301
(Attn! Cancelled from 01012015)
|
|
|
ear crimp hose clamp |
13,3X7X0,6 |
1 |
|
9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
| 33 |
|
1K0201112D
|
|
|
insert piece fuel filler neck |
|
1 |
petr. engine |
|
|
|
|
| (33) |
|
1K0201112E
|
|
|
insert piece fuel filler neck |
|
1 |
diesel eng. |
|
|
|
|
