fuel line |
1.6-2.0 litres |
|
diesel eng.+ TU3,TP4,TF3, |
TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] TU3 - 4-cylinder diesel engine 2.0 l unit 03L.H [GMO - Base engine] 1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X0 - Front wheel drive [ATA - Drive layout] 1X1 - Four wheel drive [ATA - Drive layout] 9M0 - Without auxiliary heater/fuel-fired parking heater [ZUH - Auxiliary heater] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
1 |
|
1K0200059BB
|
|
|
1 set of fuel lines |
feed/return |
1 |
diesel eng. |
9M0 - Without auxiliary heater/fuel-fired parking heater [ZUH - Auxiliary heater] |
|
|
|
(1) |
|
1K0200059BE
|
|
|
1 set of fuel lines for vehicles with auxiliary
heater |
feed/return |
1 |
|
9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
3 |
|
1K0201973
|
|
|
heat insulation D >> - 05.12.2010 |
|
1 |
|
|
|
|
|
(3) |
|
1K0201973A
(Attn! Cancelled from 01042011)
|
|
|
heat insulation D - 06.12.2010>> |
|
1 |
|
|
|
|
|
4 |
|
1K0201607R
|
|
|
extraction unit with metering
pump D >> - 07.11.2010 |
|
1 |
diesel eng. |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
(4) |
|
1K0201607AF
|
|
|
extraction unit with metering
pump D - 08.11.2010>> |
|
1 |
diesel eng. |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
(4) |
|
1K0201607P
|
|
|
extraction unit with metering
pump D >> - 07.11.2010 |
|
1 |
petr. engine |
1X0 - Front wheel drive [ATA - Drive layout] 9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
(4) |
|
1K0201607AD
|
|
|
extraction unit with metering
pump D - 08.11.2010>> |
|
1 |
|
9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
- |
|
N 10203501
|
|
|
clamp |
11,3X5X0,5 |
1 |
|
9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
- |
|
N 10198301
(Attn! Cancelled from 01012015)
|
|
|
ear crimp hose clamp |
13,3X7X0,6 |
1 |
|
9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
5 |
|
1H0201449
|
|
|
clip |
4 point |
X |
|
|
|
|
|
6 |
|
1K0201293D
|
|
|
fuel line |
feed |
1 |
diesel eng. |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X0 - Front wheel drive [ATA - Drive layout] |
|
|
|
(6) |
|
1K0201293G
|
|
|
fuel line |
feed |
1 |
diesel eng. |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] |
|
|
|
7 |
|
1K0201294C
|
|
|
fuel line |
return |
1 |
|
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X0 - Front wheel drive [ATA - Drive layout] |
|
|
|
(7) |
|
1K0201294K
|
|
|
fuel line |
return |
1 |
diesel eng. |
1E0 - Without activated carbon canister [AKB - Activated carbon canister] 1X1 - Four wheel drive [ATA - Drive layout] |
|
|
|
9 |
|
|
|
|

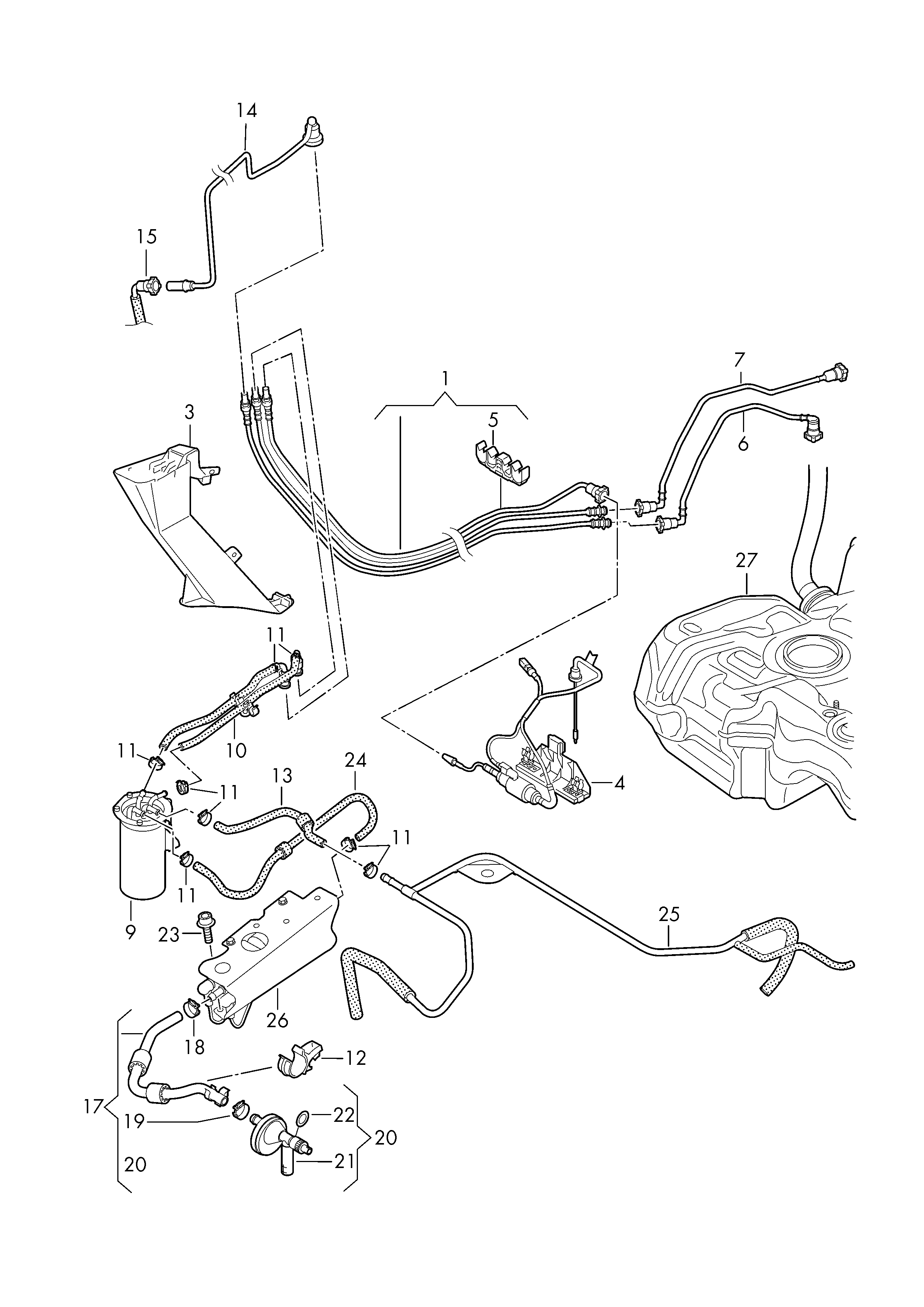

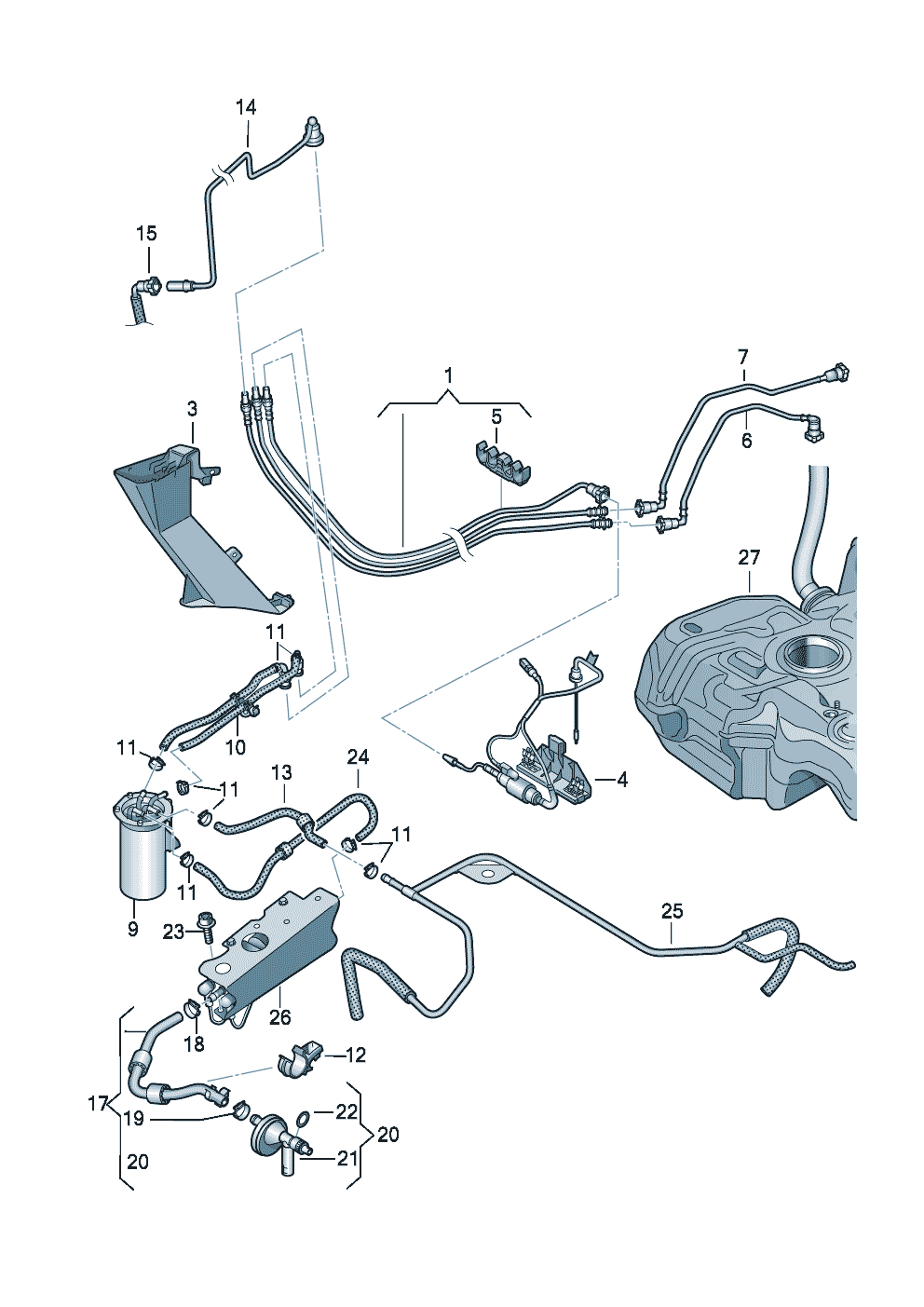

see illustration: |
127-020 |
|
|
|
|
|
|
10 |
|
1K0130295AC
(Attn! Cancelled from 01122010)
|
|
|
fuel pipe D >> - 11.07.2010 |
feed/return |
1 |
|
|
|
|
|
(10) |
|
1K0130295AJ
(Attn! Cancelled from 01122018)
|
|
|
fuel pipe D - 12.07.2010>> |
feed/return |
1 |
|
|
|
|
|
(10) |
|
1K0130295AQ
|
|
|
fuel pipe D - 12.07.2010>> |
feed/return |
1 |
|
|
|
|
|
11 |
|
N 90686701
|
|
|
spring band clamp |
14X12 |
X |
|
|
|
|
|
13 |
|
1K0130307AR
(Attn! Cancelled from 01092017)
|
|
|
fuel pipe |
feed |
1 |
|
TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] |
|
|
|
(13) |
|
1K0130307BK
|
|
|
fuel pipe |
feed |
1 |
|
TU3 - 4-cylinder diesel engine 2.0 l unit 03L.H [GMO - Base engine] |
|
|
|
(13) |
|
1K0130307BD
(Attn! Cancelled from 01112016)
|
|
|
fuel hose |
|
1 |
|
TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] |
|
|
|
14 |
|
1K0201418H
(Attn! Cancelled from 01102017)
|
|
|
fuel line for vehicles with auxiliary
heater |
|
1 |
|
9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
15 |
|
1T0201418C
|
|
|
fuel line for vehicles with auxiliary
heater |
|
1 |
|
9M1 - Fuel-fired parking heater [ZUH - Auxiliary heater] 9M9 - Fuel-fired parking heater with radio remote control [ZUH - Auxiliary heater] |
|
|
|
17 |
|
5N0130307J
(Attn! Cancelled from 01052017)
|
|
|
fuel hose with
temperature sender with: temperature regulator spacer ring |
03L 919 824 C N 105 195 01 |
1;;1;2 |
|
|
|
|
|
17 |
|
1K0130307CC
|
|
|
fuel hose with
temperature sender with: temperature regulator spacer ring |
|
1;;1;2 |
|
|
|
|
|
18 |
|
N 90986501
|
|
|
spring band clamp |
14,5X12 |
X |
|
|
|
|
|
19 |
|
4B0422379
|
|
|
spring band clamp |
16X12 |
1 |
|
|
|
|
|
20 |
|
03L919824C
|
|
|
temperature sensor o-ring adapter |
059 919 523 A WHT 002 287 C 03L 919 565 B |
1;1;1 |
|
|
|
|
|
21 |
|
|
|
|
no replacement part |
|
|
|
|
|
|
|
22 |
|
|
|
|
no replacement part |
|
|
|
|
|
|
|
24 |
|
1K0130307BH
(Attn! Cancelled from 01122017)
|
|
|
fuel hose |
|
1 |
|
TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] TU3 - 4-cylinder diesel engine 2.0 l unit 03L.H [GMO - Base engine] |
|
|
|
(24) |
|
1K0130307BC
|
|
|
fuel hose with
temperature sender |
|
1 |
|
TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] |
|
|
|
25 |
|
03L201360AA
(Attn! Cancelled from 01062010)
|
|
|
fuel line |
|
1 |
|
TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] |
|
|
|
26 |
|
5N0906129B
|
|
|
fuel pump with: retaining plate for boot sound absorber for pump |
|
1 |
|
|
|
|
|
27 |
|
|
|
|
see illustration: |
201-005 |
|
|
|
|
|
|
