Pos. |
Classic |
Part Number |
Image |
Period |
Name |
Note |
ST |
Input Data by Model |
PR-Number |
MKB4 |
GKB |
Price |
|
|
|
|
|

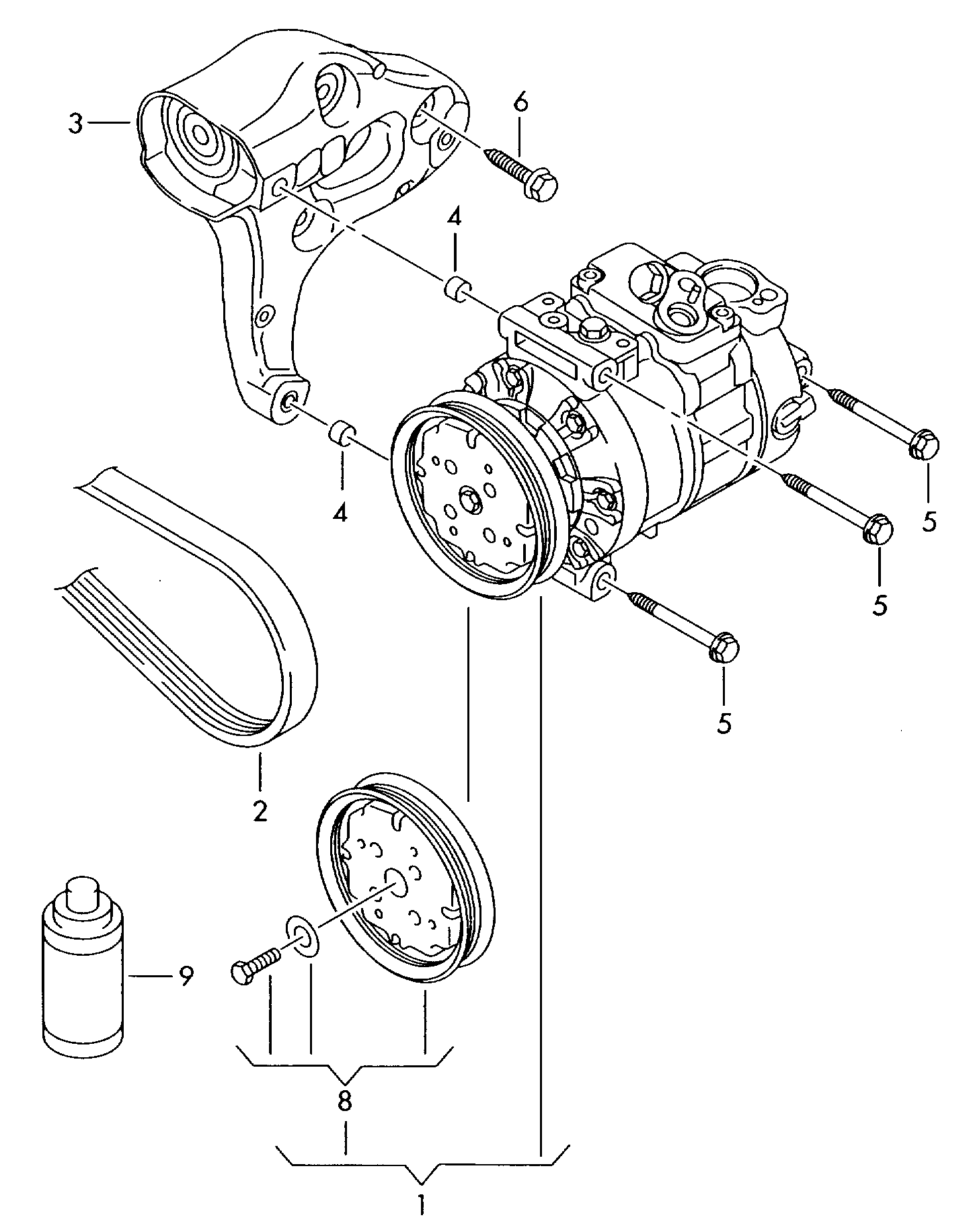

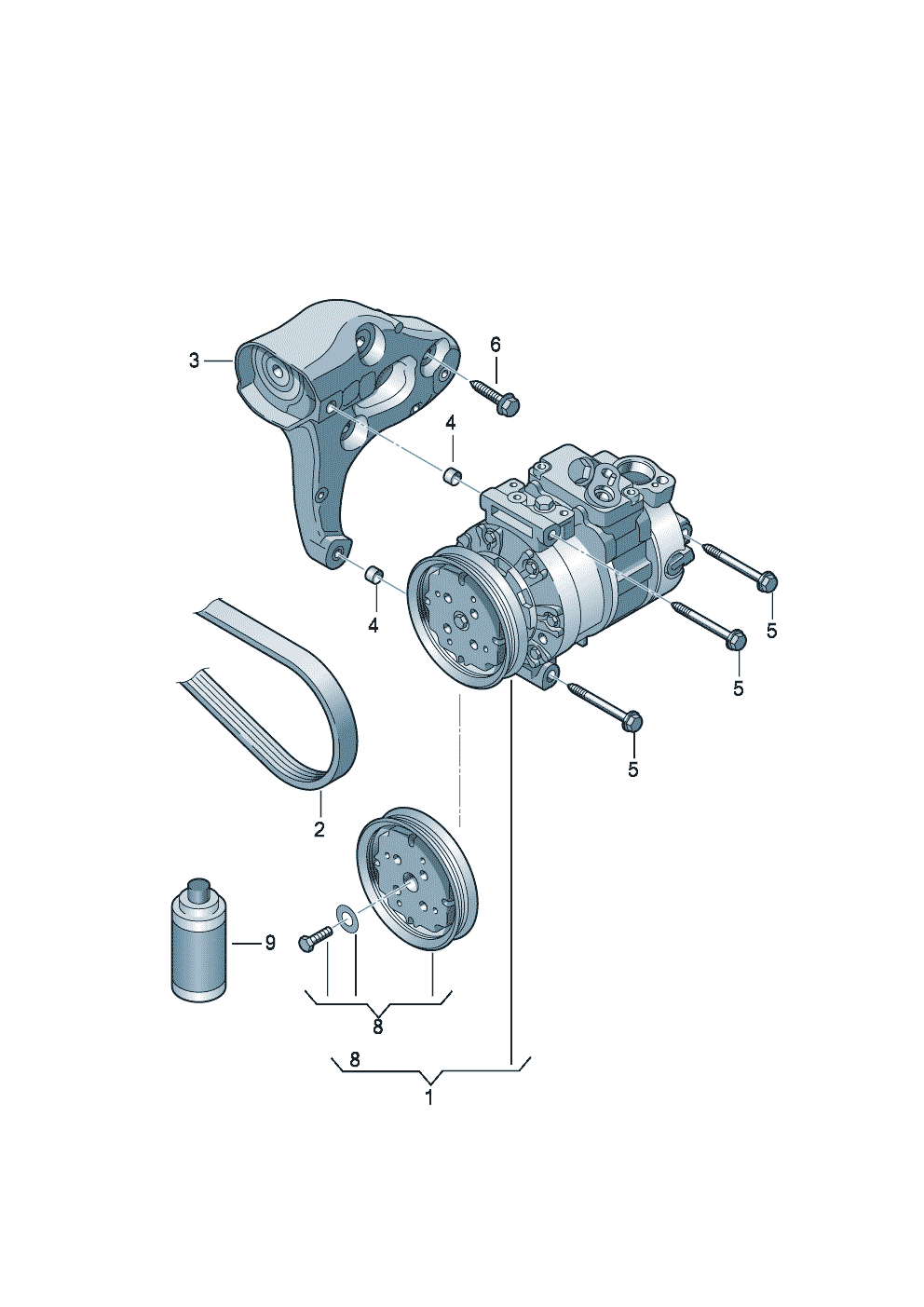

a/c compressor connecting and mounting parts
for compressor before parts order,
physical inspection of
old part necessary |
|
|
4-cylinder petr. engine diesel eng. |
KH6 - Electronically controlled air conditioning system [HKA - Heating and air conditioning system] TE6 - 4-cylinder SI engine 1.8 l unit 06J.3 [GMO - Base engine] TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] TU0 - 4-cylinder SI engine 1.4 l unit 03C.K [GMO - Base engine] TU3 - 4-cylinder diesel engine 2.0 l unit 03L.H [GMO - Base engine] TW0 - 4-cylinder SI engine 1.2 l unit 03F.B [GMO - Base engine] 8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z6 - Hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] 8Z9 - Super hot country [MKU - Engine cooling system] 9AK - Climatronic with impact pressure control, CFC-free [HKA - Heating and air conditioning system] 9AP - Climatic air-conditioning system (semi-automatic) [HKA - Heating and air conditioning system] |
|
|
|
1 |
|
1K0820859S
|
|
|
a/c compressor |
DENSO |
1 |
petr. engine |
TE6 - 4-cylinder SI engine 1.8 l unit 06J.3 [GMO - Base engine] TU0 - 4-cylinder SI engine 1.4 l unit 03C.K [GMO - Base engine] TW0 - 4-cylinder SI engine 1.2 l unit 03F.B [GMO - Base engine] 8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z6 - Hot country [MKU - Engine cooling system] 8Z9 - Super hot country [MKU - Engine cooling system] |
|
|
|
(1) |
|
1K0820859SX
|
|
|
a/c compressor |
DENSO |
1 |
petr. engine |
TE6 - 4-cylinder SI engine 1.8 l unit 06J.3 [GMO - Base engine] TU0 - 4-cylinder SI engine 1.4 l unit 03C.K [GMO - Base engine] TW0 - 4-cylinder SI engine 1.2 l unit 03F.B [GMO - Base engine] 8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z6 - Hot country [MKU - Engine cooling system] 8Z9 - Super hot country [MKU - Engine cooling system] |
|
|
|
(1) |
|
1K0820808A
|
|
|
a/c compressor |
DENSO |
1 |
TE6,8Z5,8Z7 |
TE6 - 4-cylinder SI engine 1.8 l unit 06J.3 [GMO - Base engine] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] |
|
|
|
(1) |
|
1K0820808AX
(Attn! Cancelled from 01122022)
|
|
|
a/c compressor |
DENSO |
1 |
TE6,8Z5,8Z7 |
8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] TE6 - 4-cylinder SI engine 1.8 l unit 06J.3 [GMO - Base engine] |
|
|
|
(1) |
|
1K0820859T
|
|
|
a/c compressor |
DENSO |
1 |
CAXA |
KH6 - Electronically controlled air conditioning system [HKA - Heating and air conditioning system] TU0 - 4-cylinder SI engine 1.4 l unit 03C.K [GMO - Base engine] 8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] 9AK - Climatronic with impact pressure control, CFC-free [HKA - Heating and air conditioning system] |
|
|
|
(1) |
|
1K0820859TX
(Attn! Cancelled from 01092022)
|
|
|
a/c compressor |
DENSO |
1 |
CAXA |
8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] 9AK - Climatronic with impact pressure control, CFC-free [HKA - Heating and air conditioning system] KH6 - Electronically controlled air conditioning system [HKA - Heating and air conditioning system] TU0 - 4-cylinder SI engine 1.4 l unit 03C.K [GMO - Base engine] |
|
|
|
(1) |
|
5N0820803E
(Attn! Cancelled from 01082011)
|
|
|
a/c compressor D - 09.05.2011>> - 27.05.2013 |
DELPHI |
1 |
|
8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] |
|
|
|
(1) |
|
5N0820803F
|
|
|
a/c compressor D - 03.10.2011>> |
|
1 |
|
8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] |
|
|
|
(1) |
|
5N0820803C
(Attn! Cancelled from 01082012)
|
|
|
a/c compressor D >> - 12.02.2012 |
SANDEN |
1 |
|
TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] TU0 - 4-cylinder SI engine 1.4 l unit 03C.K [GMO - Base engine] TU3 - 4-cylinder diesel engine 2.0 l unit 03L.H [GMO - Base engine] TW0 - 4-cylinder SI engine 1.2 l unit 03F.B [GMO - Base engine] 8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] |
|
|
|
(1) |
|
5N0820803H
(Attn! Cancelled from 01092014)
|
|
|
a/c compressor D - 03.02.2012>> - 05.11.2012 |
SANDEN |
1 |
|
TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] |
|
|
|
(1) |
|
5N0820803HX
(Attn! Cancelled from 01092014)
|
|
|
a/c compressor D - 03.02.2012>> - 05.11.2012 |
SANDEN |
1 |
|
8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] |
|
|
|
(1) |
|
5K0820803
(Attn! Cancelled from 01082015)
|
|
|
a/c compressor D - 06.11.2012>> |
SANDEN |
1 |
|
TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] |
|
|
|
(1) |
|
5K0820803 X
(Attn! Cancelled from 01072016)
|
|
|
a/c compressor D - 06.11.2012>> |
SANDEN |
1 |
|
8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] |
|
|
|
(1) |
|
5N0820803G
(Attn! Cancelled from 01092014)
|
|
|
a/c compressor D - 03.02.2012>> - 05.11.2012 |
SANDEN |
1 |
|
TU0 - 4-cylinder SI engine 1.4 l unit 03C.K [GMO - Base engine] TW0 - 4-cylinder SI engine 1.2 l unit 03F.B [GMO - Base engine] 8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] |
|
|
|
(1) |
|
5K0820803C
(Attn! Cancelled from 01092015)
|
|
|
a/c compressor D - 06.11.2012>> |
SANDEN |
1 |
|
TU0 - 4-cylinder SI engine 1.4 l unit 03C.K [GMO - Base engine] TW0 - 4-cylinder SI engine 1.2 l unit 03F.B [GMO - Base engine] 8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] |
|
|
|
(1) |
|
5K0820803CX
(Attn! Cancelled from 01102015)
|
|
|
a/c compressor D - 06.11.2012>> |
SANDEN |
1 |
|
8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] TU0 - 4-cylinder SI engine 1.4 l unit 03C.K [GMO - Base engine] TW0 - 4-cylinder SI engine 1.2 l unit 03F.B [GMO - Base engine] |
|
|
|
- |
|
1K0260839
|
|
|
regulating valve only for: |
SANDEN 1K0820808B 1K0820808BX 1K0820808D 1K0820808DX 5N0820803C 5N0820803H |
1 |
|
|
|
|
|
2 |
|
|
|
|
see illustration: |
903-095 |
|
|
|
|
|
|
3 |
|
|
|
|
see illustration: |
903-050 |
|
|
|
|
|
|
4 |
|
07K260817
(Attn! Cancelled from 01072011)
|
|
|
centre sleeve |
11,15X6,5 |
3 |
|
|
|
|
|
5 |
|
N 90707502
|
|
|
hexagon head bolt (combi) |
M8X100X41 |
3 |
|
|
|
|
|
9 |
|
G 052300A2
|
|
|
coolant compressor oil |
250ML DENSO DELPHI MAHLE |
1 |
|
|
|
|
|
(9) |
|
G 052154A2
|
|
|
coolant compressor oil |
250ML SANDEN DELPHI MAHLE |
1 |
|
|
|
|
|
