Pos. |
Classic |
Part Number |
Image |
Period |
Name |
Note |
ST |
Input Data by Model |
PR-Number |
MKB4 |
GKB |
Price |
|
|
|
|
|

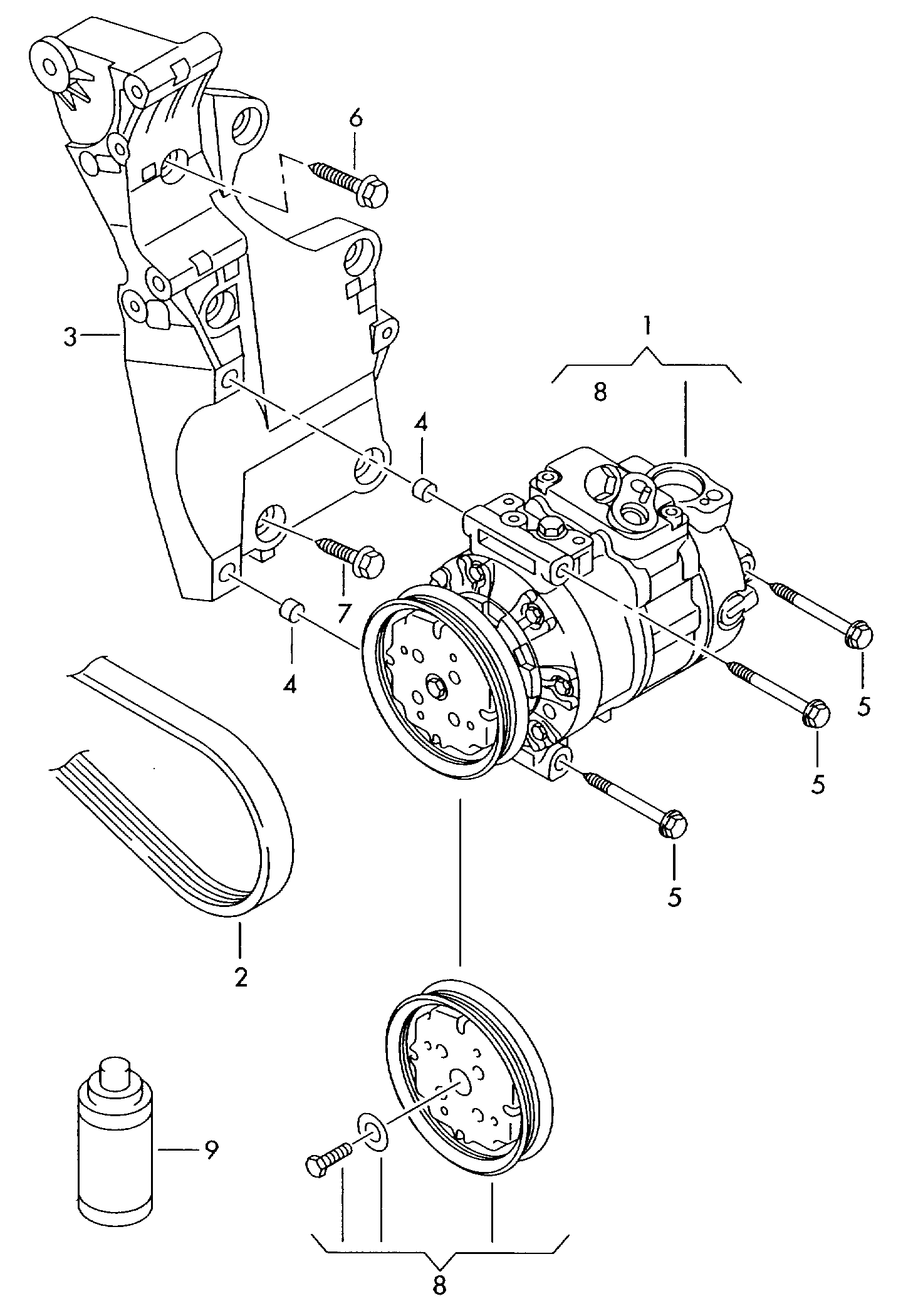

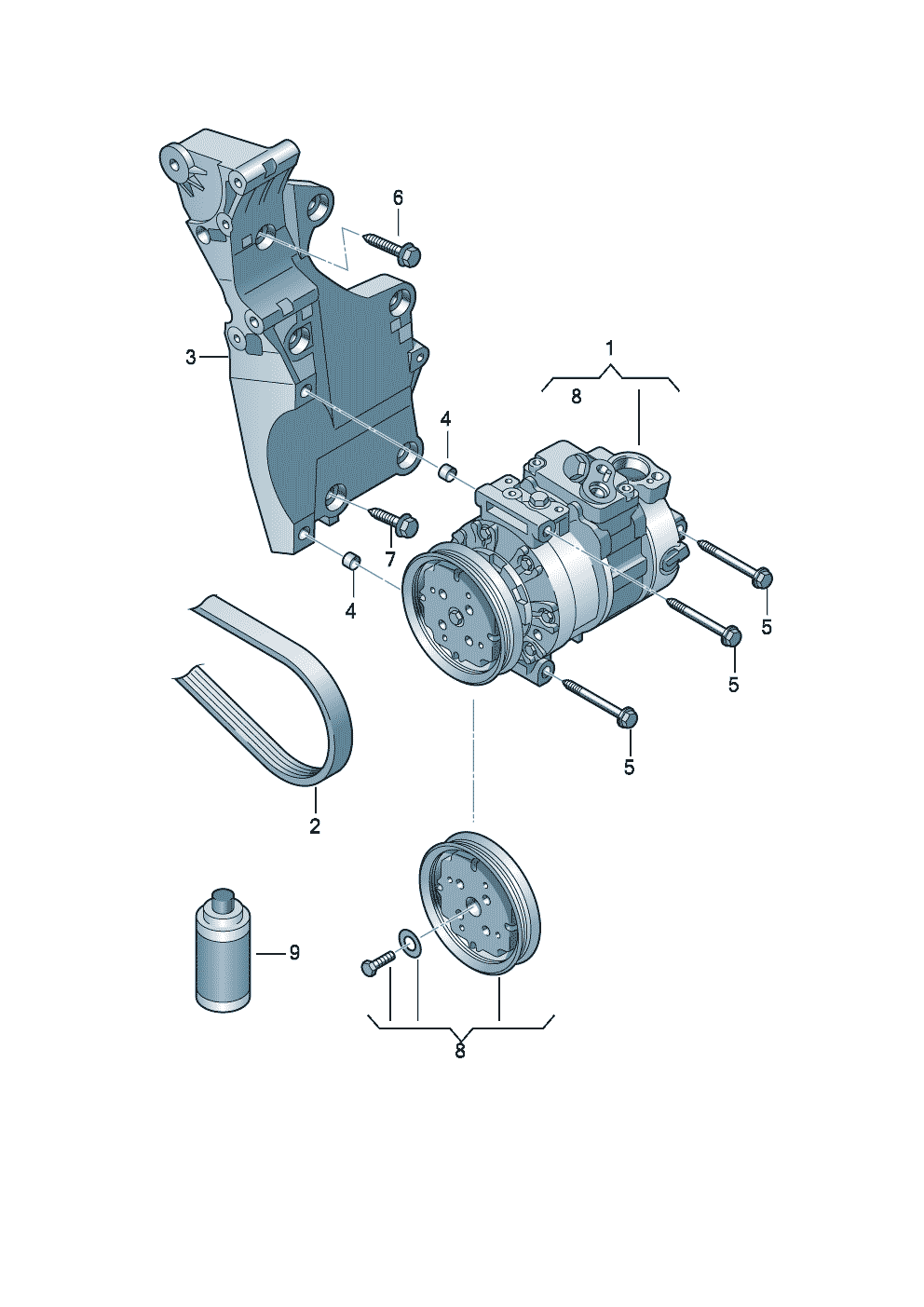

a/c compressor connecting and mounting parts
for compressor before parts order,
physical inspection of
old part necessary |
|
|
diesel eng. |
KH6 - Electronically controlled air conditioning system [HKA - Heating and air conditioning system] TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] TP4 - 4-cylinder diesel engine 2.0 l unit 03L.P [GMO - Base engine] TU3 - 4-cylinder diesel engine 2.0 l unit 03L.H [GMO - Base engine] 8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z6 - Hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] 8Z9 - Super hot country [MKU - Engine cooling system] 9AK - Climatronic with impact pressure control, CFC-free [HKA - Heating and air conditioning system] 9AP - Climatic air-conditioning system (semi-automatic) [HKA - Heating and air conditioning system] |
|
|
|
1 |
|
1K0820859QX
(Attn! Cancelled from 01122010)
|
|
|
a/c compressor |
SANDEN |
1 |
|
8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z6 - Hot country [MKU - Engine cooling system] 8Z9 - Super hot country [MKU - Engine cooling system] |
|
|
|
(1) |
|
1K0820808B
(Attn! Cancelled from 01102012)
|
|
|
a/c compressor D >> - 29.04.2012 |
SANDEN |
1 |
|
8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z6 - Hot country [MKU - Engine cooling system] 8Z9 - Super hot country [MKU - Engine cooling system] |
|
|
|
(1) |
|
1K0820808BX
(Attn! Cancelled from 01062013)
|
|
|
a/c compressor D >> - 29.04.2012 |
SANDEN |
1 |
|
8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z6 - Hot country [MKU - Engine cooling system] 8Z9 - Super hot country [MKU - Engine cooling system] |
|
|
|
(1) |
|
1K0820808D
(Attn! Cancelled from 01092014)
|
|
|
a/c compressor D - 30.04.2012>> - 01.10.2012 |
SANDEN |
1 |
|
8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z6 - Hot country [MKU - Engine cooling system] 8Z9 - Super hot country [MKU - Engine cooling system] |
|
|
|
(1) |
|
1K0820808DX
(Attn! Cancelled from 01092014)
|
|
|
a/c compressor D - 30.04.2012>> - 01.10.2012 |
SANDEN |
1 |
|
8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z6 - Hot country [MKU - Engine cooling system] 8Z9 - Super hot country [MKU - Engine cooling system] |
|
|
|
(1) |
|
1K0820808F
|
|
|
a/c compressor D - 02.10.2012>> |
SANDEN |
1 |
|
8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z6 - Hot country [MKU - Engine cooling system] 8Z9 - Super hot country [MKU - Engine cooling system] |
|
|
|
(1) |
|
1K0820808FX
|
|
|
a/c compressor D - 02.10.2012>> |
SANDEN |
1 |
|
8Z4 - Moderate hot country [MKU - Engine cooling system] 8Z6 - Hot country [MKU - Engine cooling system] 8Z9 - Super hot country [MKU - Engine cooling system] |
|
|
|
- |
|
1K0260839
|
|
|
regulating valve only for: |
SANDEN 1K0820808B 1K0820808BX 1K0820808D 1K0820808DX 5N0820803C 5N0820803H |
1 |
|
|
|
|
|
(1) |
|
1K0820808A
|
|
|
a/c compressor |
DENSO |
1 |
PR:TF3 |
KH6 - Electronically controlled air conditioning system [HKA - Heating and air conditioning system] TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] 8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] 9AK - Climatronic with impact pressure control, CFC-free [HKA - Heating and air conditioning system] |
|
|
|
(1) |
|
1K0820808AX
(Attn! Cancelled from 01122022)
|
|
|
a/c compressor |
DENSO |
1 |
PR:TF3 |
8Z5 - Not hot country [MKU - Engine cooling system] 8Z7 - Cold country [MKU - Engine cooling system] 9AK - Climatronic with impact pressure control, CFC-free [HKA - Heating and air conditioning system] KH6 - Electronically controlled air conditioning system [HKA - Heating and air conditioning system] TF3 - 4-cylinder diesel engine 1.6 l unit 03L.1 [GMO - Base engine] |
|
|
|
2 |
|
|
|
|
see illustration: |
903-095 |
|
|
|
|
|
|
3 |
|
|
|
|
see illustration: |
903-060 |
|
|
|
|
|
|
4 |
|
07K260817
(Attn! Cancelled from 01072011)
|
|
|
centre sleeve |
11,15X6,5 |
2 |
|
|
|
|
|
5 |
|
N 90707501
(Attn! Cancelled from 01062014)
|
|
|
hexagon head bolt (combi) |
M8X100X41 |
1 |
|
|
|
|
|
9 |
|
G 052300A2
|
|
|
coolant compressor oil |
250ML DENSO DELPHI MAHLE |
1 |
|
|
|
|
|
(9) |
|
G 052154A2
|
|
|
coolant compressor oil |
250ML SANDEN DELPHI MAHLE |
1 |
|
|
|
|
|
