Pos. |
Classic |
Part Number |
Image |
Period |
Name |
Note |
ST |
Input Data by Model |
PR-Number |
MKB4 |
GKB |
Price |
|
|
|
|
|

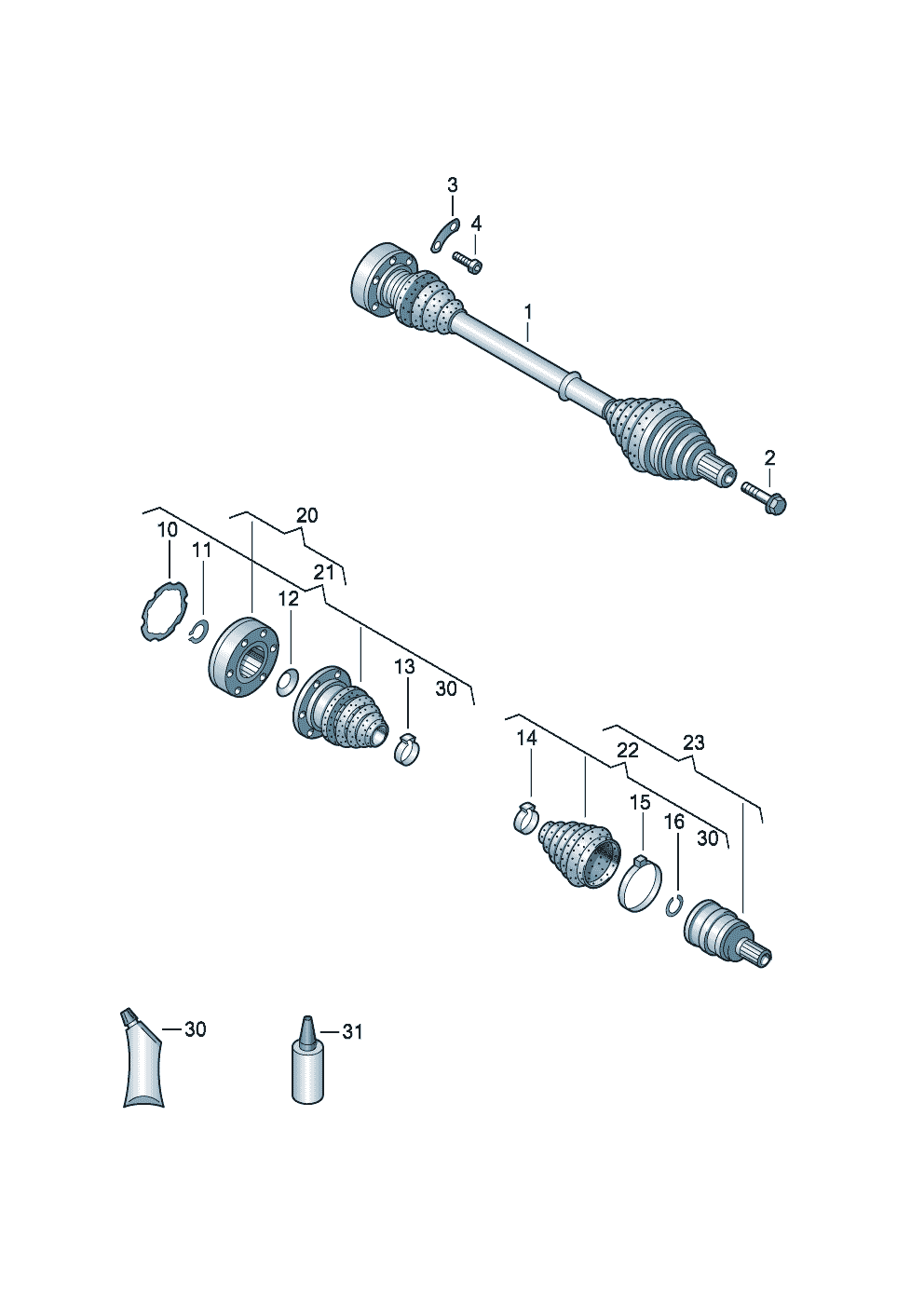

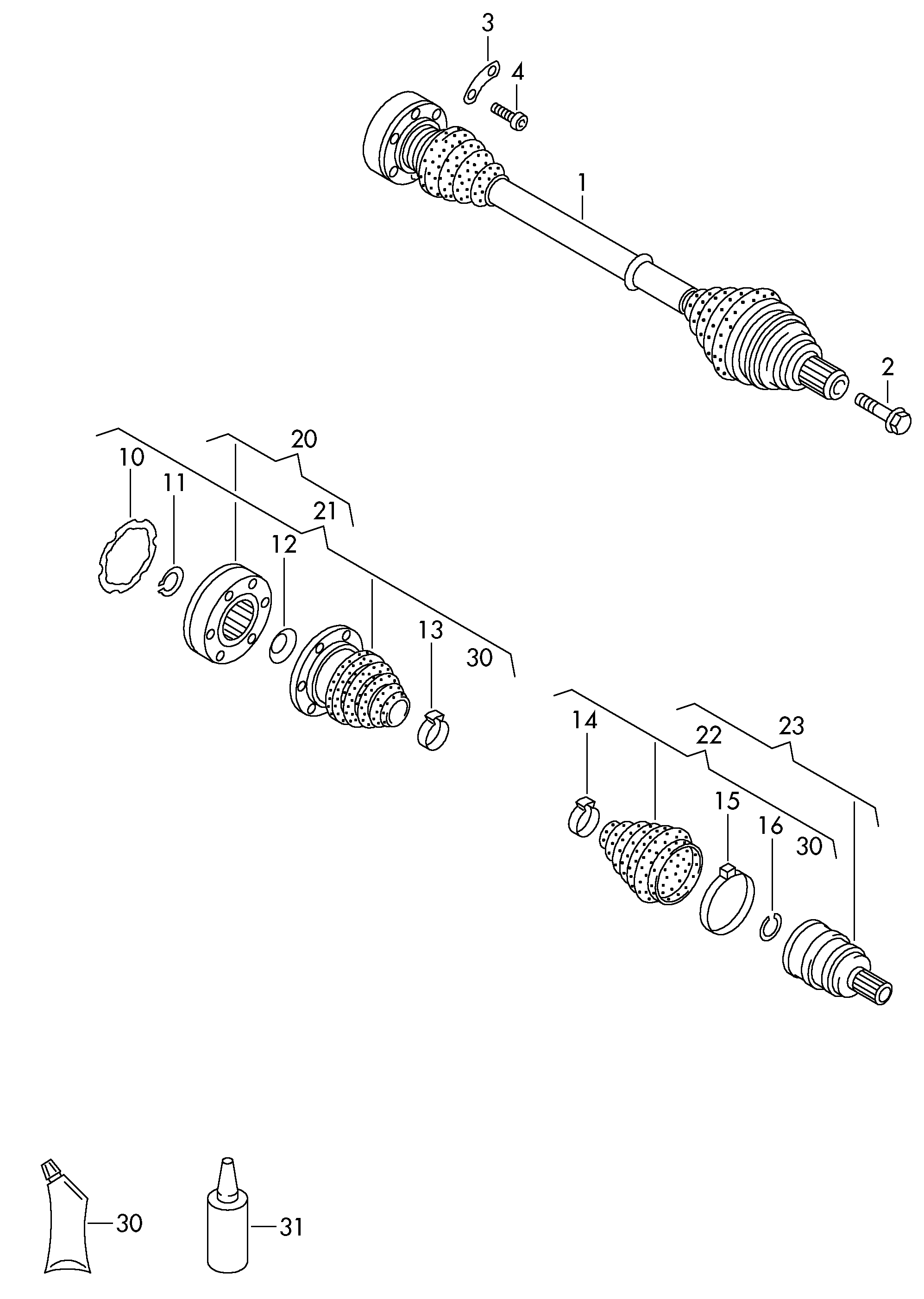

drive shaft for 6 speed manual gearbox |
front |
|
frt.-wh.dr.+ CAXA |
G0K - 6-speed manual transmission [GSP - Transmission specifications] TU0 - 4-cylinder SI engine 1.4 l unit 03C.K [GMO - Base engine] |
CAXA |
|
|
1 |
|
1K0407271KP
|
|
|
drive shaft with constant
velocity joints |
left |
1 |
|
|
|
|
|
(1) |
|
1K0407763GX
(Attn! Cancelled from 01122022)
|
|
|
drive shaft with constant
velocity joints |
left |
1 |
|
|
|
|
|
(1) |
|
1K0407272QM
|
|
|
drive shaft with constant
velocity joint and balance
weight on inner side |
right |
1 |
|
|
|
|
|
(1) |
|
1K0407764NX
(Attn! Cancelled from 01022022)
|
|
|
drive shaft with constant
velocity joint and balance
weight on inner side |
right |
1 |
|
|
|
|
|
2 |
|
WHT005437
(Attn! Cancelled from 01042020)
|
|
|
dodecagonal head bolt |
M16X1,5X70 |
2 |
|
|
|
|
|
3 |
|
1K0407357C
|
|
|
spacer |
|
6 |
|
|
|
|
|
4 |
|
N 91108201
|
|
|
socket head bolt with inner
multipoint head |
M8X48 |
12 |
|
|
|
|
|
10 |
|
8D0407309
|
|
|
sealing plate |
90MM |
2 |
|
|
|
|
|
11 |
|
113517279
|
|
|
snap ring |
24,5X2 |
2 |
|
|
|
|
|
12 |
|
113501327A
|
|
|
belleville spring
(internal gears) |
|
2 |
|
|
|
|
|
13 |
|
N 90442501
|
|
|
clamp |
32X10X0,8 |
2 |
|
|
|
|
|
14 |
|
N 90442501
|
|
|
clamp |
32X10X0,8 |
2 |
|
|
|
|
|
15 |
|
N 10736201
|
|
|
clamp |
99X10X1 left |
1 |
|
|
|
|
|
15 |
|
N 10736201
|
|
|
clamp D >> - 11.03.2013 |
99X10X1 right |
1 |
|
|
|
|
|
(15) |
|
N 90772401
|
|
|
clamp D - 12.03.2013>> - 27.05.2013 |
92,5X10X1 right |
1 |
|
|
|
|
|
15 |
|
N 10736201
|
|
|
clamp D - 28.05.2013>> |
99X10X1 right |
1 |
|
|
|
|
|
16 |
|
5N0407297
|
|
|
securing ring |
27,1X1,8 left |
1 |
|
|
|
|
|
16 |
|
5N0407297
|
|
|
securing ring D >> - 11.03.2013 |
27,1X1,8 right |
1 |
|
|
|
|
|
(16) |
|
171407297C
|
|
|
snap ring D - 12.03.2013>> - 27.05.2013 |
right |
1 |
|
|
|
|
|
16 |
|
5N0407297
|
|
|
securing ring D - 28.05.2013>> |
27,1X1,8 right |
1 |
|
|
|
|
|
20 |
|
1K0498103
(Attn! Cancelled from 01092020)
|
|
|
constant velocity joint with
boot, attachment parts and
grease |
inner |
2 |
|
|
|
|
|
(20) |
|
1K0498103 X
(Attn! Cancelled from 01082020)
|
|
|
constant velocity joint with
boot, attachment parts and
grease |
inner |
2 |
|
|
|
|
|
21 |
|
1K0498201
(Attn! Cancelled from 01092019)
|
|
|
joint protective boot with
assembly items and grease |
inner |
2 |
|
|
|
|
|
22 |
|
5M0498203
(Attn! Cancelled from 01032020)
|
|
|
joint protective boot with
assembly items and grease |
left outer |
1 |
|
|
|
|
|
22 |
|
5M0498203
(Attn! Cancelled from 01032020)
|
|
|
joint protective boot with
assembly items and grease D >> - 11.03.2013 |
right outer |
1 |
|
|
|
|
|
(22) |
|
1K0498203
(Attn! Cancelled from 01092021)
|
|
|
joint protective boot with
assembly items and grease D - 12.03.2013>> - 27.05.2013 |
right outer |
1 |
|
|
|
|
|
22 |
|
5M0498203
(Attn! Cancelled from 01032020)
|
|
|
joint protective boot with
assembly items and grease D - 28.05.2013>> |
right outer |
1 |
|
|
|
|
|
23 |
|
5M0498099
(Attn! Cancelled from 01062017)
|
|
|
outer joint with
assembly parts |
left |
1 |
|
|
|
|
|
23 |
|
5M0498099 X
(Attn! Cancelled from 01122016)
|
|
|
outer joint with
assembly parts |
left |
1 |
|
|
|
|
|
23 |
|
5M0498099
(Attn! Cancelled from 01062017)
|
|
|
outer joint with
assembly parts D >> - 11.03.2013 |
right |
1 |
|
|
|
|
|
23 |
|
5M0498099 X
(Attn! Cancelled from 01122016)
|
|
|
outer joint with
assembly parts D >> - 11.03.2013 |
right |
1 |
|
|
|
|
|
(23) |
|
1K0498099E
(Attn! Cancelled from 21062005)
|
|
|
outer joint with
assembly parts D - 12.03.2013>> - 27.05.2013 |
right |
1 |
|
|
|
|
|
(23) |
|
1K0498099EX
(Attn! Cancelled from 01122017)
|
|
|
outer joint with
assembly parts D - 12.03.2013>> - 27.05.2013 |
right |
1 |
|
|
|
|
|
23 |
|
5M0498099
(Attn! Cancelled from 01062017)
|
|
|
outer joint with
assembly parts D - 28.05.2013>> |
right |
1 |
|
|
|
|
|
23 |
|
5M0498099 X
(Attn! Cancelled from 01122016)
|
|
|
outer joint with
assembly parts D - 28.05.2013>> |
right |
1 |
|
|
|
|
|
30 |
|
G 052738A2
|
|
|
grease for universal
joint |
120G outer |
X |
|
|
|
|
|
(30) |
|
G 052133A3
|
|
|
high temperature grease |
120G inner |
X |
|
|
|
|
|
31 |
|
D 454300A2
|
|
|
sealant |
125G inner |
X |
|
|
|
|
|
