| id | catalog | markt | modell | einsatz | auslauf | bezeichnung | landersymbol | epis_typ | katalogart | fi | hauptgruppen | vbz_tabelle | vkb | produktionswerk | katalogmarkt | brasilien | submarke | neue_bilder | epis_alpha | ezb |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4814 | SK | CZ | YET | 2010 | 2018 | Yeti | 0 | 0 | 0 | 0 | ABDHKNU6 |
| id | catalog | markt | modell | einsatz | auslauf | bezeichnung | landersymbol | epis_typ | katalogart | fi | hauptgruppen | vbz_tabelle | vkb | produktionswerk | katalogmarkt | brasilien | submarke | neue_bilder | epis_alpha | ezb |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4817 | SK | CZ | YET | 2012 | 666 | 0 | 1 | 1234567890 | 2 | 5L7;677 | ABDHKU6 | CZ | 5 | J | 666 | N |
| catalog | hg | hgts | flag | short_text | text | synonim |
|---|---|---|---|---|---|---|

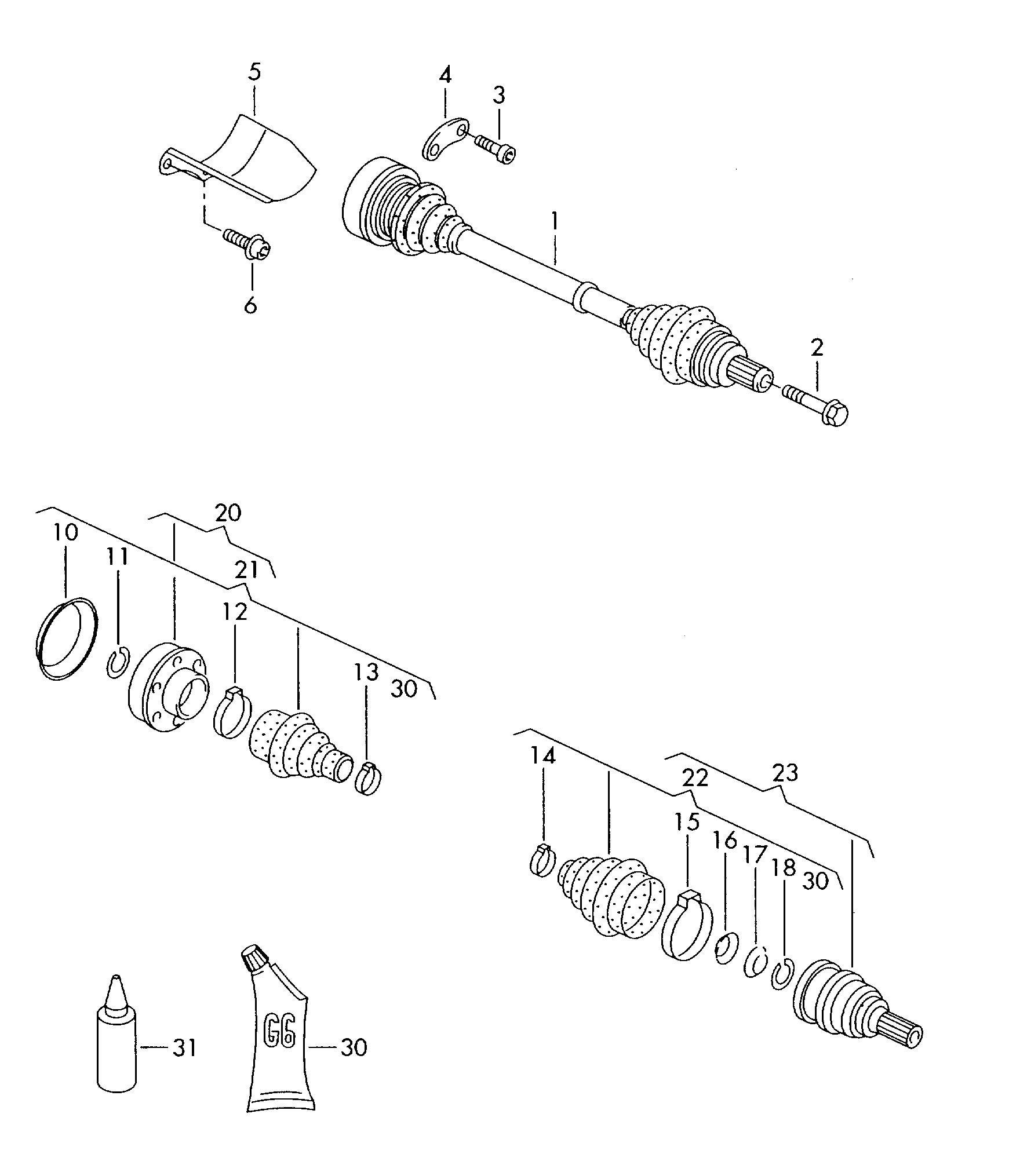

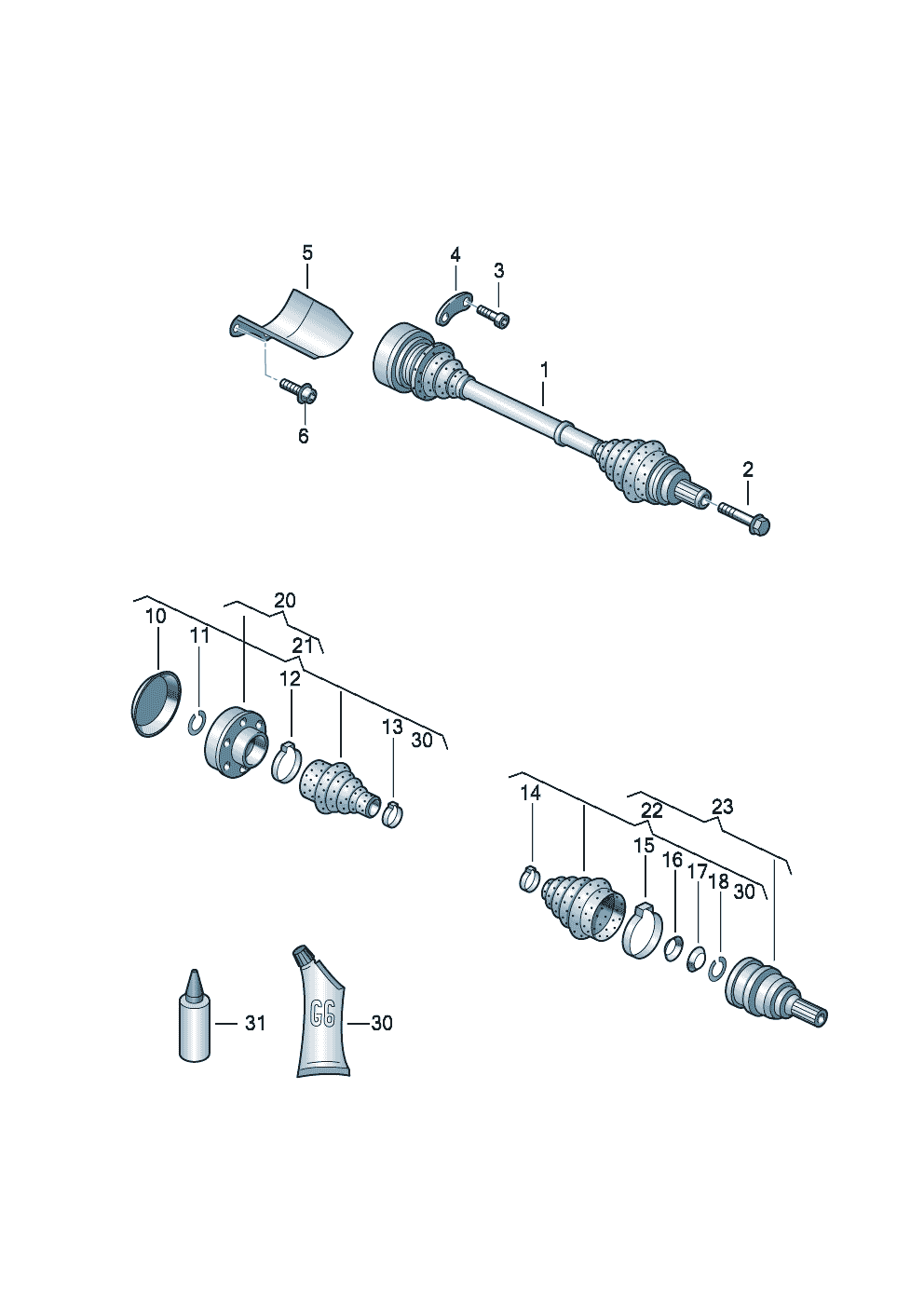

SK | 4 | 181 | front axle, steering |
|
|
| Pos. | Classic | Part Number | Image | Period | Name | Note | ST | Input Data by Model | PR-Number | MKB4 | GKB | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
drive shaft |
front |
CBDB,CEGA, |
G0L - Six-speed manual transmission for four-wheel drive vehicle [GSP - Transmission specifications] |
CBDB CEGA CFHA CFHC CFHF CFJA CLCB |
||||||||
| 1 | 1K0407271EE(Attn! Cancelled from 01112018) |
drive shaft with constant velocity joints |
left |
1 | ||||||||
| (1) | 1K0407451TX(Attn! Cancelled from 01012016) |
drive shaft with constant velocity joints |
left |
1 | ||||||||
| (1) | 1K0407272CR |
drive shaft with constant velocity joints |
right |
1 | ||||||||
| (1) | 1K0407452TX(Attn! Cancelled from 01012023) |
drive shaft with constant velocity joints |
right |
1 | ||||||||
| 2 | WHT002795(Attn! Cancelled from 01092012) |
dodecagonal head bolt |
M16X1,5X70 |
2 | ||||||||
| 3 | N 90991102 |
socket head bolt with inner multipoint head |
M10X52 |
12 | ||||||||
| 4 | 443407357B(Attn! Cancelled from 01072010) |
spacer |
6 | |||||||||
| 5 | 1K0407720A(Attn! Cancelled from 01062014) |
heat shield plate |
1 | |||||||||
| 6 | 1K0407407 |
hexagon socket head pipe nut |
M8X20X15 |
1 | ||||||||
| 10 | 1J0407115H |
end cap |
inner |
2 | ||||||||
| 11 | N 0123741 |
securing ring |
28X1,5 |
2 | ||||||||
| 12 | N 90947301 |
clamp |
75X10X1 |
2 | ||||||||
| 13 | N 10609101 |
clamp |
35X10X0,8 |
2 | ||||||||
| 14 | N 10609101 |
clamp |
34,7X10X0,8 |
2 | ||||||||
| 15 | N 90630701 |
clamp |
102,5X10X1 |
2 | ||||||||
| 16 | 1J0407287 |
belleville spring |
2 | |||||||||
| 17 | 1J0407295 |
thrust ring |
29,7X12,5 |
2 | ||||||||
| 18 | 1J0407297 |
securing ring |
2 | |||||||||
| 20 | 1K0498103A(Attn! Cancelled from 01082019) |
constant velocity joint with boot, attachment parts and grease |
inner |
2 | ||||||||
| (20) | 1K0498103AX(Attn! Cancelled from 01082019) |
constant velocity joint with boot, attachment parts and grease |
inner |
2 | ||||||||
| 21 | 1K0498201A(Attn! Cancelled from 01122019) |
joint protective boot with assembly items and grease |
inner |
2 | ||||||||
| 22 | 1K0498203A(Attn! Cancelled from 01062020) |
joint protective boot with assembly items and grease |
outer |
2 | ||||||||
| 23 | 1K0498099B(Attn! Cancelled from 01062013) |
outer joint with assembly parts |
2 | |||||||||
| (23) | 1K0498099BX(Attn! Cancelled from 01042021) |
outer joint with assembly parts |
2 | |||||||||
| 30 | G 052738A2 |
grease for universal joint |
120G |
1 | ||||||||
| (30) | G 052133A2 |
high temperature grease |
90G |
2 | ||||||||
| 31 | D 454300A2 |
sealant |
125G |
X |
