Pos. |
Classic |
Part Number |
Image |
Period |
Name |
Note |
ST |
Input Data by Model |
PR-Number |
MKB4 |
GKB |
Price |
|
|
|
|
|

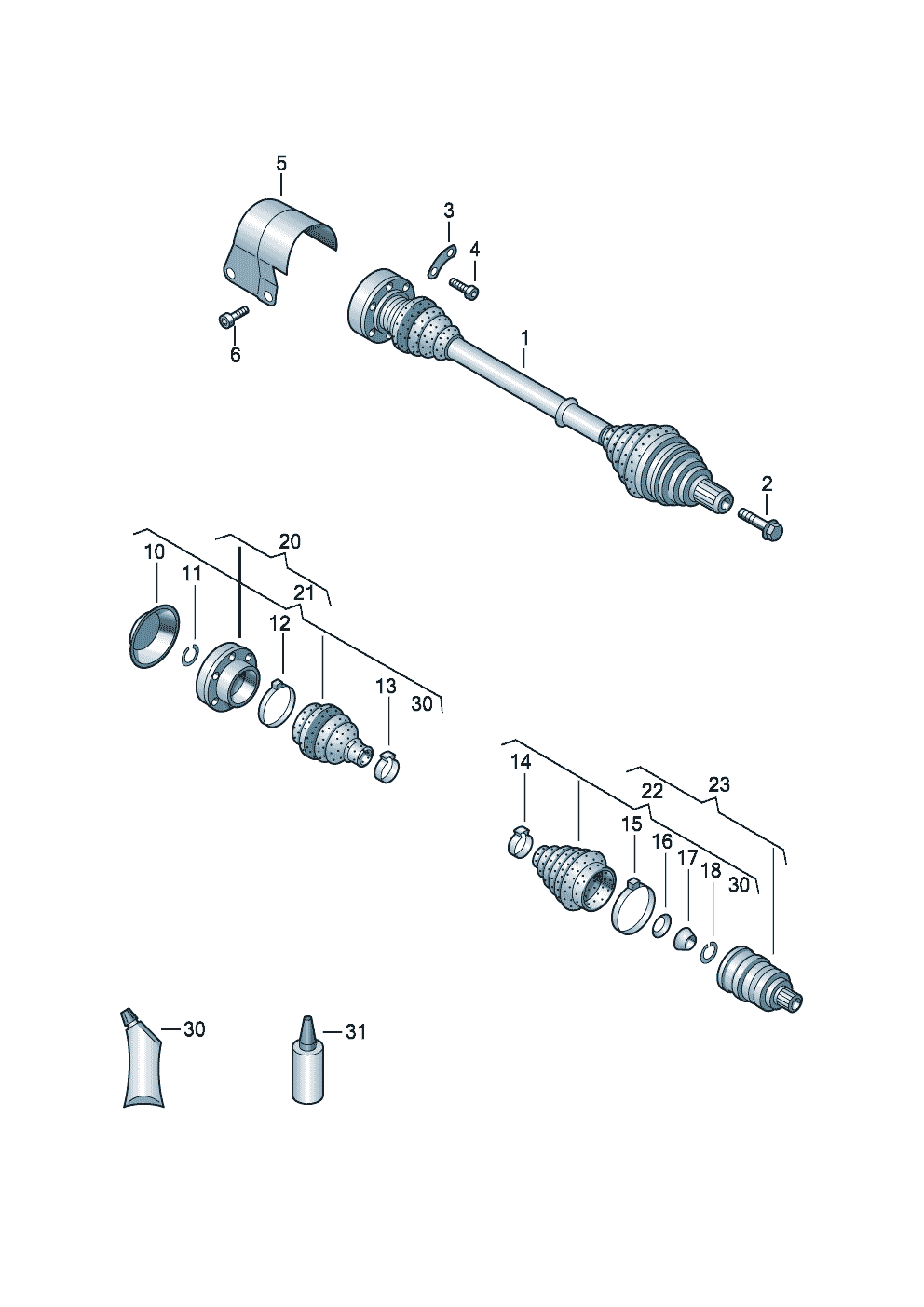

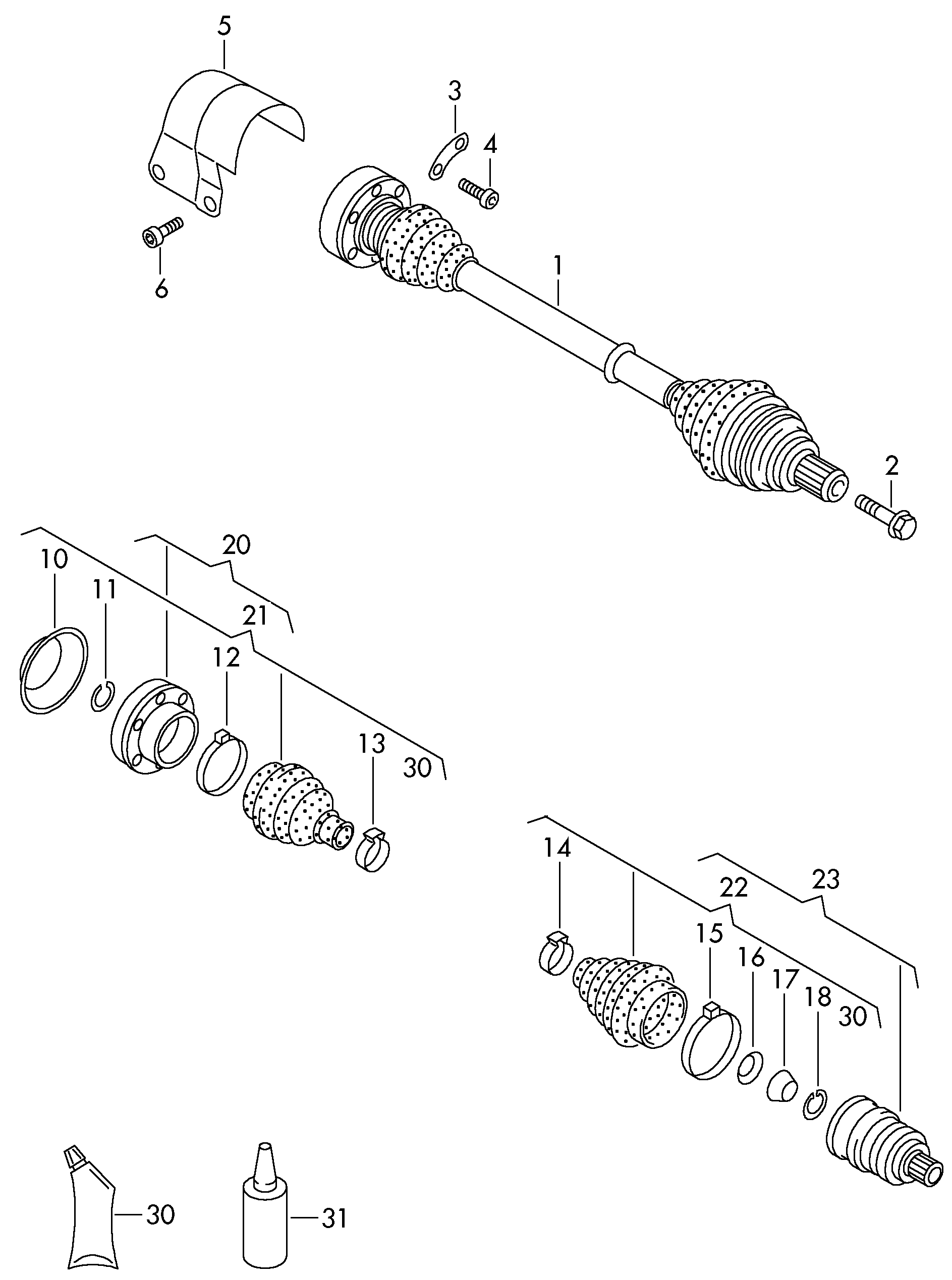

drive shaft for 5 speed manual transmiss. only for: |
front india |
|
frt.-wh.dr.+ CLCA |
7ML - Emission standard EU4 IND Bharat Stage 4 [AGM - Emissions standard] |
CLCA |
|
|
1 |
|
2K0407271E
(Attn! Cancelled from 01092015)
|
|
|
drive shaft with constant
velocity joints |
left |
1 |
|
|
|
|
|
(1) |
|
2K0407271EX
(Attn! Cancelled from 01082015)
|
|
|
drive shaft with constant
velocity joints |
left |
1 |
|
|
|
|
|
(1) |
|
2K0407272E
(Attn! Cancelled from 01072015)
|
|
|
drive shaft with constant
velocity joints |
right |
1 |
|
|
|
|
|
(1) |
|
2K0407272EX
(Attn! Cancelled from 01052015)
|
|
|
drive shaft with constant
velocity joints |
right |
1 |
|
|
|
|
|
2 |
|
WHT002795
(Attn! Cancelled from 01092012)
|
|
|
dodecagonal head bolt |
M16X1,5X70 |
2 |
|
|
|
|
|
3 |
|
1K0407357D
|
|
|
spacer |
|
6 |
|
|
|
|
|
4 |
|
N 90991102
|
|
|
socket head bolt with inner
multipoint head |
M10X52 |
12 |
|
|
|
|
|
5 |
|
1K0407721C
(Attn! Cancelled from 01082017)
|
|
|
heat shield plate |
|
1 |
|
|
|
|
|
6 |
|
N 10170512
|
|
|
hexagon bolt |
M10X20 |
2 |
|
|
|
|
|
10 |
|
1J0407115H
|
|
|
end cap |
inner |
2 |
|
|
|
|
|
11 |
|
1K0407298A
|
|
|
securing ring |
28X1,5 |
2 |
|
|
|
|
|
12 |
|
N 90947301
|
|
|
clamp |
75X10X1 |
2 |
|
|
|
|
|
13 |
|
N 10609101
|
|
|
clamp |
34,7X10X0,8 |
2 |
|
|
|
|
|
14 |
|
N 10609101
|
|
|
clamp |
34,7X10X0,8 |
2 |
|
|
|
|
|
15 |
|
N 90630701
|
|
|
clamp |
102,5X10X1 |
2 |
|
|
|
|
|
16 |
|
1J0407287
|
|
|
belleville spring |
|
2 |
|
|
|
|
|
17 |
|
1J0407295
|
|
|
thrust ring |
29,7X12,5 |
2 |
|
|
|
|
|
18 |
|
1J0407297
|
|
|
securing ring |
|
2 |
|
|
|
|
|
20 |
|
1K0498103A
(Attn! Cancelled from 01082019)
|
|
|
constant velocity joint with
boot, attachment parts and
grease |
inner |
2 |
|
|
|
|
|
(20) |
|
1K0498103AX
(Attn! Cancelled from 01082019)
|
|
|
constant velocity joint with
boot, attachment parts and
grease |
inner |
2 |
|
|
|
|
|
21 |
|
1K0498201A
(Attn! Cancelled from 01122019)
|
|
|
joint protective boot with
assembly items and grease |
inner |
2 |
|
|
|
|
|
22 |
|
1K0498203A
(Attn! Cancelled from 01062020)
|
|
|
joint protective boot with
assembly items and grease |
outer |
2 |
|
|
|
|
|
23 |
|
1K0498099B
(Attn! Cancelled from 01062013)
|
|
|
outer joint with
assembly parts for drive shaft: |
2K0.407.271.E |
2 |
|
|
|
|
|
(23) |
|
1K0498099G
(Attn! Cancelled from 01112017)
|
|
|
outer joint with
assembly parts for drive shaft: |
1K0.407.271.PF |
2 |
|
|
|
|
|
(23) |
|
1K0498099BX
(Attn! Cancelled from 01042021)
|
|
|
outer joint with
assembly parts |
|
2 |
|
|
|
|
|
30 |
|
G 052738A2
|
|
|
grease for universal
joint |
120G outer |
X |
|
|
|
|
|
(30) |
|
G 052133A3
|
|
|
high temperature grease |
120G inner |
X |
|
|
|
|
|
31 |
|
D 454300A2
|
|
|
sealant |
125G inner |
X |
|
|
|
|
|
