Pos. |
Classic |
Part Number |
Image |
Period |
Name |
Note |
ST |
Input Data by Model |
PR-Number |
MKB4 |
GKB |
Price |
|
|
|
|
|

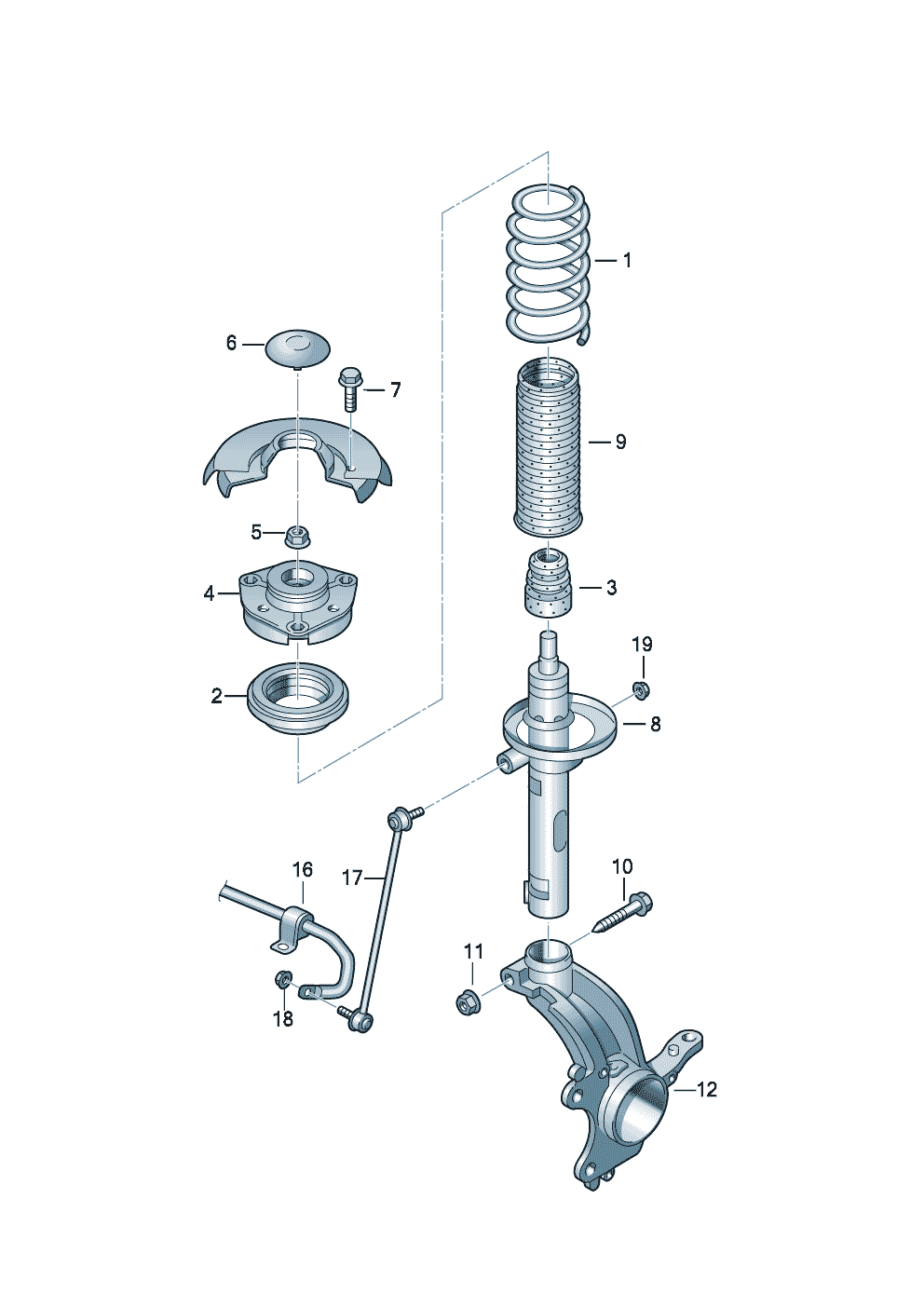

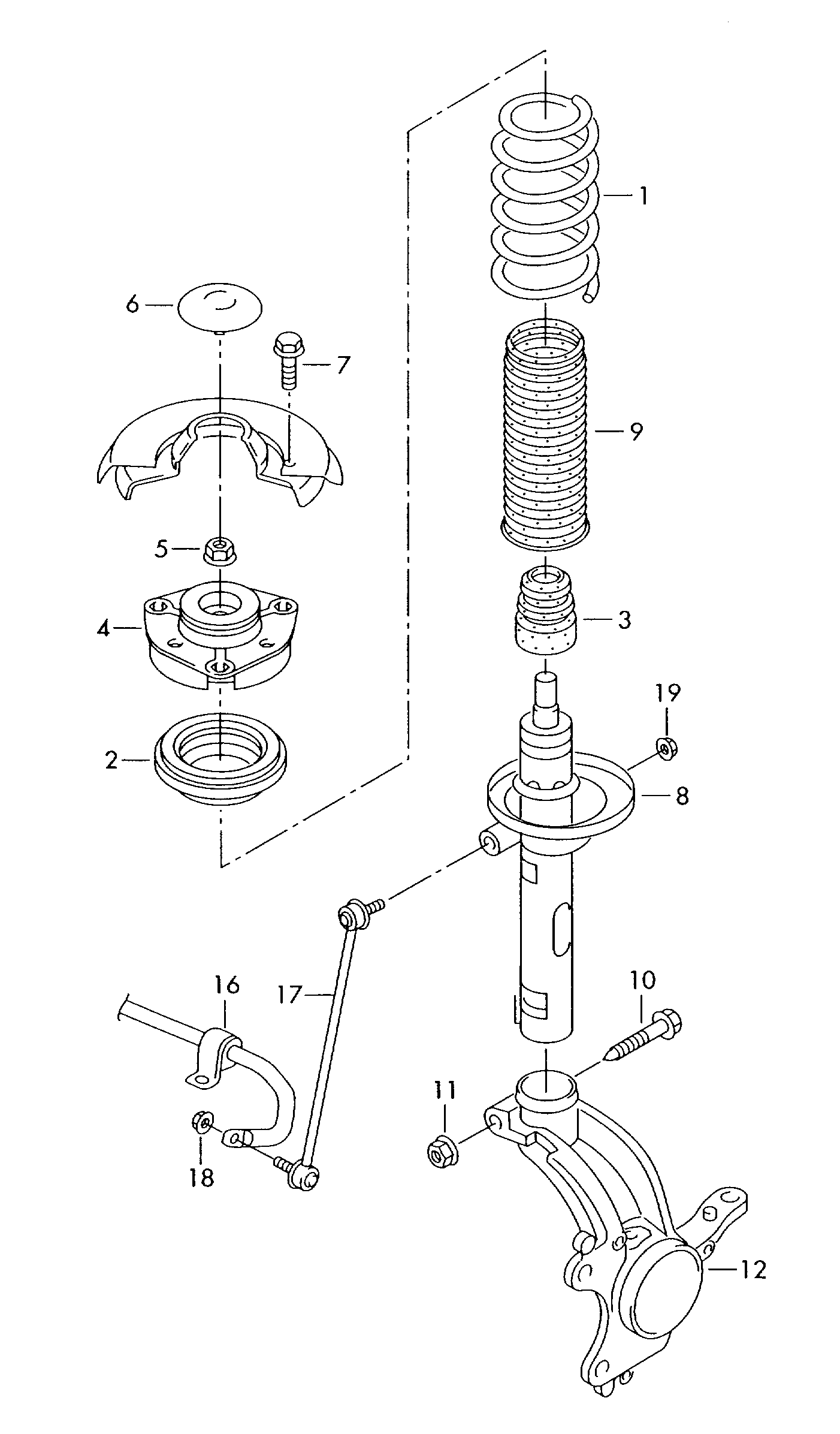

suspension shock absorber (spring cyl.) anti-roll bar |
front |
|
|
G02 - Shock absorption in front [DFV - Suspension system in front] G06 - Shock absorption in front [DFV - Suspension system in front] L13 - Suspension range 13 installation control only, no requirement forecast [GKV - Weight category front axle] L40 - Suspension range 40 installation control only, no requirement forecast [GKV - Weight category front axle] L57 - Suspension range 57 installation control only, no requirement forecast [GKV - Weight category front axle] L60 - Suspension range 60 installation control only, no requirement forecast [GKV - Weight category front axle] L61 - Suspension range 61 installation control only, no requirement forecast [GKV - Weight category front axle] L66 - Suspension range 66 installation control only, no requirement forecast [GKV - Weight category front axle] L67 - Suspension range 67 installation control only, no requirement forecast [GKV - Weight category front axle] 1X0 - Front wheel drive [ATA - Drive layout] 0AF - Front stabilizer [STV - Front stabilizer] 1X1 - Four wheel drive [ATA - Drive layout] L56 - Suspension range 56 installation control only, no requirement forecast [GKV - Weight category front axle] G77 - Shock absorption in front [DFV - Suspension system in front] 0AE - Front stabilizer [STV - Front stabilizer] L07 - Suspension range 07 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
1 |
|
1K0411105BC
|
|
|
coil spring 1 paint mark 1 paint mark 2 paint marks |
violet orange blue |
2 |
PR:L13 |
L13 - Suspension range 13 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
1 |
|
1K0411105CM
|
|
|
coil spring 2 paint marks 2 paint marks |
violet grey |
2 |
PR:L40 |
L40 - Suspension range 40 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
1 |
|
1K0411105DJ
|
|
|
coil spring 4 colour strokes |
blue |
2 |
PR:L57 |
L57 - Suspension range 57 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
1 |
|
1K0411105DK
|
|
|
coil spring 3 paint marks |
orange |
2 |
PR:L60 |
L60 - Suspension range 60 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
1 |
|
1K0411105DL
|
|
|
coil spring 4 colour strokes |
orange |
2 |
PR:L61 |
L61 - Suspension range 61 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
1 |
|
1K0411105DM
|
|
|
coil spring 2 paint marks |
violet |
2 |
PR:L66 |
L66 - Suspension range 66 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
1 |
|
1K0411105DN
|
|
|
coil spring 3 paint marks |
violet |
2 |
PR:L67 |
L67 - Suspension range 67 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
1 |
|
1K0411105DH
|
|
|
coil spring 4 colour strokes also marked with: 3 paint marks 2 |
green violet brown |
2 |
PR:L56 |
L56 - Suspension range 56 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
1 |
|
1K0411105AQ
|
|
|
coil spring 1 paint mark 1 paint mark 1 paint mark also marked with: 1 paint mark 4 colour strokes |
violet orange blue grey blue |
2 |
PR:L07 |
L07 - Suspension range 07 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
2 |
|
6N0412249C
(Attn! Cancelled from 01062015)
|
|
|
deep groove ball thrust bearng |
|
2 |
|
|
|
|
|
3 |
|
1K0412303G
|
|
|
rubber stop for
shock absorber |
90MM |
2 |
PR:G02 |
G02 - Shock absorption in front [DFV - Suspension system in front] |
|
|
|
3 |
|
1K0412303M
|
|
|
rubber stop for
shock absorber |
80MM |
2 |
PR:G77 |
L56 - Suspension range 56 installation control only, no requirement forecast [GKV - Weight category front axle] G77 - Shock absorption in front [DFV - Suspension system in front] |
|
|
|
3 |
|
1K0412303H
|
|
|
rubber stop for
shock absorber |
90MM |
2 |
PR:G06 |
G06 - Shock absorption in front [DFV - Suspension system in front] |
|
|
|
4 |
|
1K0412331B
|
|
|
suspension strut storage |
|
2 |
|
|
|
|
|
5 |
|
N 91021601
|
|
|
hexagon collar nut |
M14X1,5 |
2 |
|
|
|
|
|
6 |
|
|
|
|
not for this model |
|
|
|
|
|
|
|
7 |
|
N 10127707
|
|
|
hex collared bolt |
M8X26 |
6 |
|
|
|
|
|
8 |
|
3C0413031BC
|
|
|
gas shock absorber |
|
2 |
PR:G06 |
G06 - Shock absorption in front [DFV - Suspension system in front] |
|
|
|
8 |
|
1K0413031BK
|
|
|
gas shock absorber |
|
2 |
PR:G02+L13, L40,L57,L07 |
G02 - Shock absorption in front [DFV - Suspension system in front] L07 - Suspension range 07 installation control only, no requirement forecast [GKV - Weight category front axle] L13 - Suspension range 13 installation control only, no requirement forecast [GKV - Weight category front axle] L40 - Suspension range 40 installation control only, no requirement forecast [GKV - Weight category front axle] L57 - Suspension range 57 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
8 |
|
JZW413031H
|
|
|
gas shock absorber 'eco' economy (use in pairs only) |
|
2 |
PR:G02+L13+ L40,L57,L07 |
G02 - Shock absorption in front [DFV - Suspension system in front] L07 - Suspension range 07 installation control only, no requirement forecast [GKV - Weight category front axle] L13 - Suspension range 13 installation control only, no requirement forecast [GKV - Weight category front axle] L40 - Suspension range 40 installation control only, no requirement forecast [GKV - Weight category front axle] L57 - Suspension range 57 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
8 |
|
1K0413031BG
|
|
|
gas shock absorber |
|
2 |
PR:G77+ L13,L56,L57, |
G77 - Shock absorption in front [DFV - Suspension system in front] L13 - Suspension range 13 installation control only, no requirement forecast [GKV - Weight category front axle] L56 - Suspension range 56 installation control only, no requirement forecast [GKV - Weight category front axle] L57 - Suspension range 57 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
8 |
|
1K0413031BL
|
|
|
gas shock absorber |
|
2 |
PR:G02+L60, L61,L66,L67 |
G02 - Shock absorption in front [DFV - Suspension system in front] L60 - Suspension range 60 installation control only, no requirement forecast [GKV - Weight category front axle] L61 - Suspension range 61 installation control only, no requirement forecast [GKV - Weight category front axle] L66 - Suspension range 66 installation control only, no requirement forecast [GKV - Weight category front axle] L67 - Suspension range 67 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
8 |
|
JZW413031H
|
|
|
gas shock absorber 'eco' economy (use in pairs only) |
|
2 |
PR:G02+L60+ L61,L66,L67 |
G02 - Shock absorption in front [DFV - Suspension system in front] L60 - Suspension range 60 installation control only, no requirement forecast [GKV - Weight category front axle] L61 - Suspension range 61 installation control only, no requirement forecast [GKV - Weight category front axle] L66 - Suspension range 66 installation control only, no requirement forecast [GKV - Weight category front axle] L67 - Suspension range 67 installation control only, no requirement forecast [GKV - Weight category front axle] |
|
|
|
9 |
|
6N0413175A
|
|
|
bellows |
|
2 |
|
|
|
|
|
10 |
|
N 90954802
|
|
|
oval hexagon socket head bolt |
M12X1,5X80 |
2 |
|
|
|
|
|
11 |
|
N 10106402
|
|
|
hexagon collar nut
self-locking |
M12X1,5 |
2 |
|
|
|
|
|
12 |
|
|
|
|
wheel bearing housing see illustration: |
407-000 |
|
|
|
|
|
|
16 |
|
1K0411303AM
|
|
|
stabilizer, complete marked with: |
23MM yellow |
1 |
frt.-wh.dr.+ PR:0AF |
1X0 - Front wheel drive [ATA - Drive layout] 0AF - Front stabilizer [STV - Front stabilizer] |
|
|
|
16 |
|
3T0411303E
|
|
|
stabilizer, complete |
|
1 |
PR:0AF+1X1 |
0AF - Front stabilizer [STV - Front stabilizer] 1X1 - Four wheel drive [ATA - Drive layout] |
|
|
|
16 |
|
1K0411303BK
|
|
|
stabilizer, complete marked with: |
23,6X3,5 green |
1 |
PR:0AE |
0AE - Front stabilizer [STV - Front stabilizer] 1X0 - Front wheel drive [ATA - Drive layout] |
|
|
|
17 |
|
1K0411315K
(Attn! Cancelled from 01062012)
|
|
|
coupling rod D >> - 21.08.2011 |
|
2 |
|
|
|
|
|
17 |
|
1K0411315P
(Attn! Cancelled from 01012013)
|
|
|
coupling rod D - 22.08.2011>> - 06.05.2012 |
|
1 |
|
|
|
|
|
(17) |
|
1K0411315R
(Attn! Cancelled from 01062018)
|
|
|
coupling rod D - 07.05.2012>> |
|
2 |
|
|
|
|
|
18 |
|
N 0150816
|
|
|
hexagon collar nut |
M12X1,5 |
2 |
|
|
|
|
|
19 |
|
N 0150816
|
|
|
hexagon collar nut |
M12X1,5 |
2 |
|
|
|
|
|
