| Pos. |
Classic |
Part Number |
Image |
Period |
Name |
Note |
ST |
Input Data by Model |
PR-Number |
MKB4 |
GKB |
Price |
|
|
|
|
|

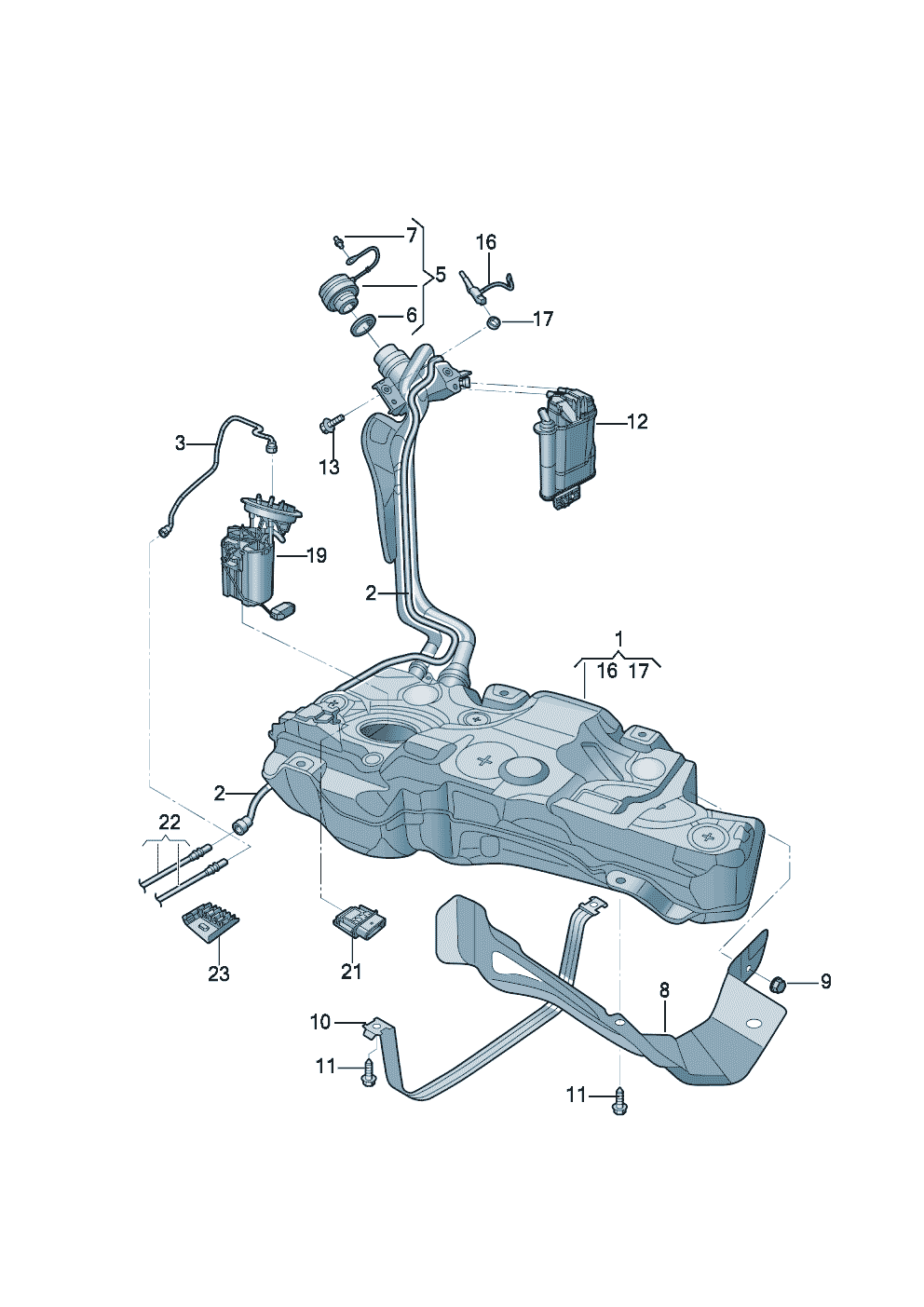

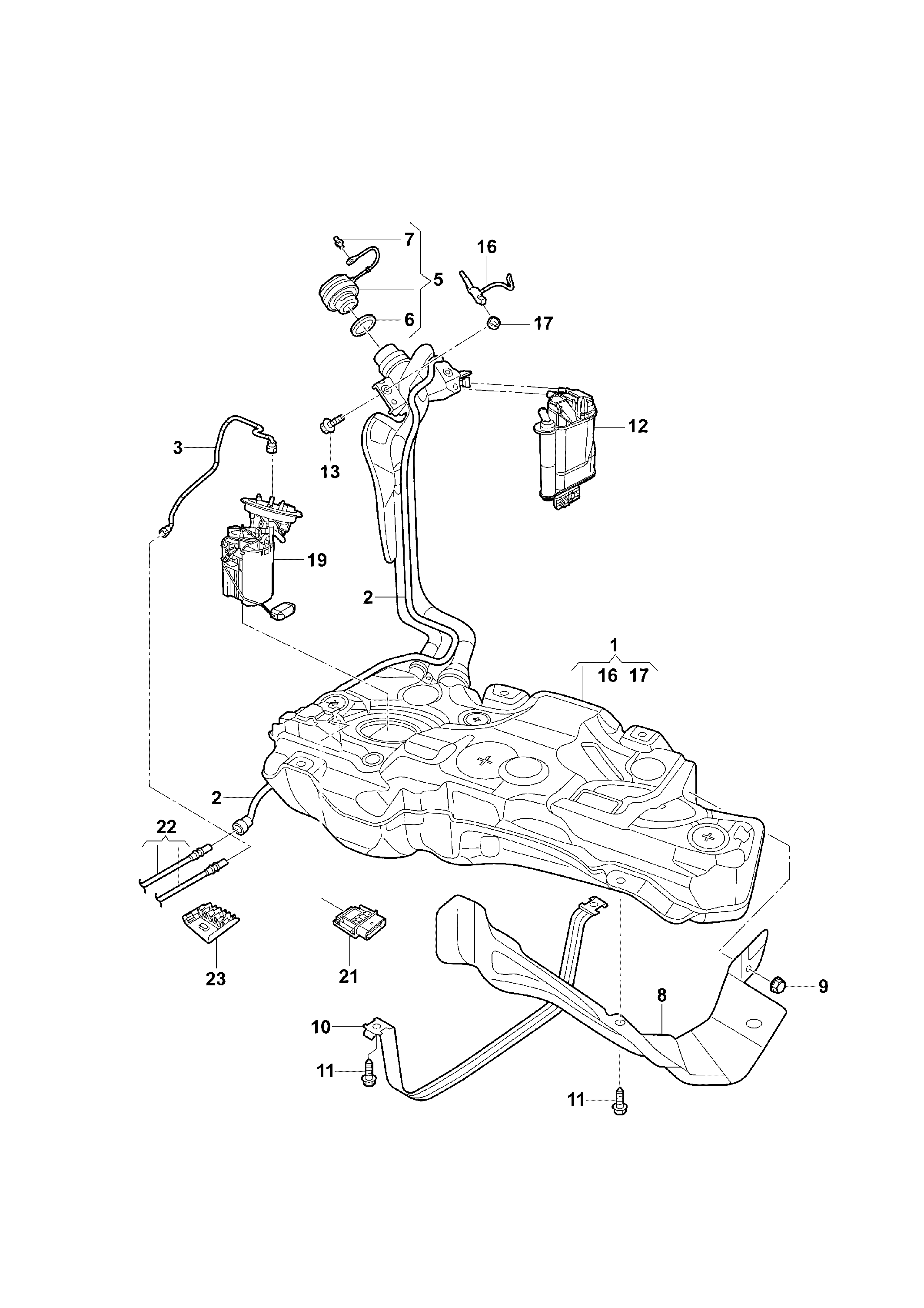

fuel tank with
attachments |
|
|
PR:1E4 |
1E4 - Activated carbon canister acc. to ORVR and siphoning device for fueling [AKB - Activated carbon canister] |
|
|
|
| 1 |
|
5QD201060D
|
|
|
fuel tank D >> - 01.11.2021 |
|
1 |
|
1E4 - Activated carbon canister acc. to ORVR and siphoning device for fueling [AKB - Activated carbon canister] |
|
|
|
| (1) |
|
5QD201060F
|
|
|
fuel tank D - 01.11.2021>> |
|
1 |
|
1E4 - Activated carbon canister acc. to ORVR and siphoning device for fueling [AKB - Activated carbon canister] |
|
|
|
| 2 |
|
5QD201160B
|
|
|
breather line |
natural |
1 |
|
1E4 - Activated carbon canister acc. to ORVR and siphoning device for fueling [AKB - Activated carbon canister] |
|
|
|
| 3 |
|
5QD201293A
|
|
|
fuel line |
feed |
1 |
|
1E4 - Activated carbon canister acc. to ORVR and siphoning device for fueling [AKB - Activated carbon canister] |
|
|
|
| 5 |
|
5QD201550D
(Attn! Cancelled from 28102022)
|
|
|
fuel tank
cap D >> - 12.10.2020 |
|
1 |
|
1E4 - Activated carbon canister acc. to ORVR and siphoning device for fueling [AKB - Activated carbon canister] |
|
|
|
| (5) |
|
5QD201550F
|
|
|
fuel tank
cap D - 12.10.2020>> |
|
1 |
|
1E4 - Activated carbon canister acc. to ORVR and siphoning device for fueling [AKB - Activated carbon canister] |
|
|
|
| 6 |
|
1K0201557A
|
|
|
seal ring |
|
1 |
|
|
|
|
|
| 7 |
|
1J0201250
|
|
|
clip |
|
1 |
|
|
|
|
|
| 8 |
|
5QD201307A
|
|
|
heat shield plate |
|
1 |
|
|
|
|
|
| 9 |
|
N 91068501
|
|
|
panel nut |
|
4 |
|
|
|
|
|
| 10 |
|
5Q0201656F
|
|
|
tensioning strap discont./new add.+fulu calc. |
|
1 |
|
|
|
|
|
| 11 |
|
N 91229601
|
|
|
hexagon head bolt (combi) |
M8X30 |
X |
|
|
|
|
|
| 12 |
|
|
|
|
activated charcoal container see illustration, item: |
201-070,1 |
|
|
1E4 - Activated carbon canister acc. to ORVR and siphoning device for fueling [AKB - Activated carbon canister] |
|
|
|
| 13 |
|
N 90693804
|
|
|
hexagon head bolt (combi) |
M6X25 |
2 |
|
|
|
|
|
| 16 |
|
|
|
|
earth line no replacement part |
|
|
|
|
|
|
|
| 17 |
|
|
|
|
spacer bush no replacement part |
|
|
|
|
|
|
|
| 19 |
|
|
|
|
fuel pump see illustration, item: |
919-030,1 |
|
|
|
|
|
|
| 21 |
|
|
|
|
control unit for fuel
pump see illustration, item: |
919-030,5 |
|
|
|
|
|
|
| 22 |
|
|
|
|
fuel line see illustration, item: |
201-016,1 |
|
|
|
|
|
|
| 23 |
|
|
|
|
clip see illustration, item: |
201-016,2 |
|
|
|
|
|
|
